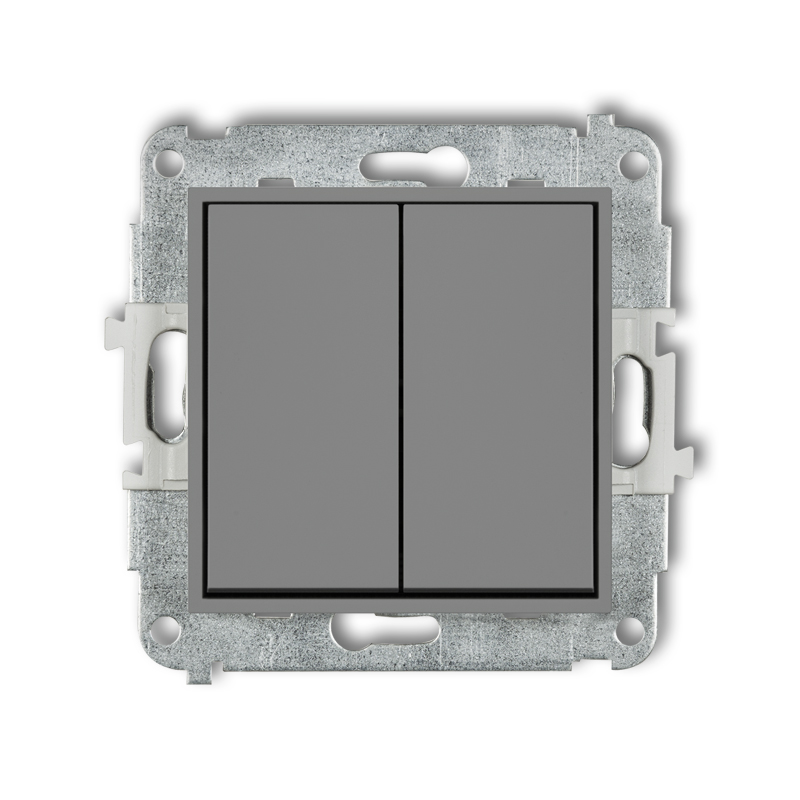

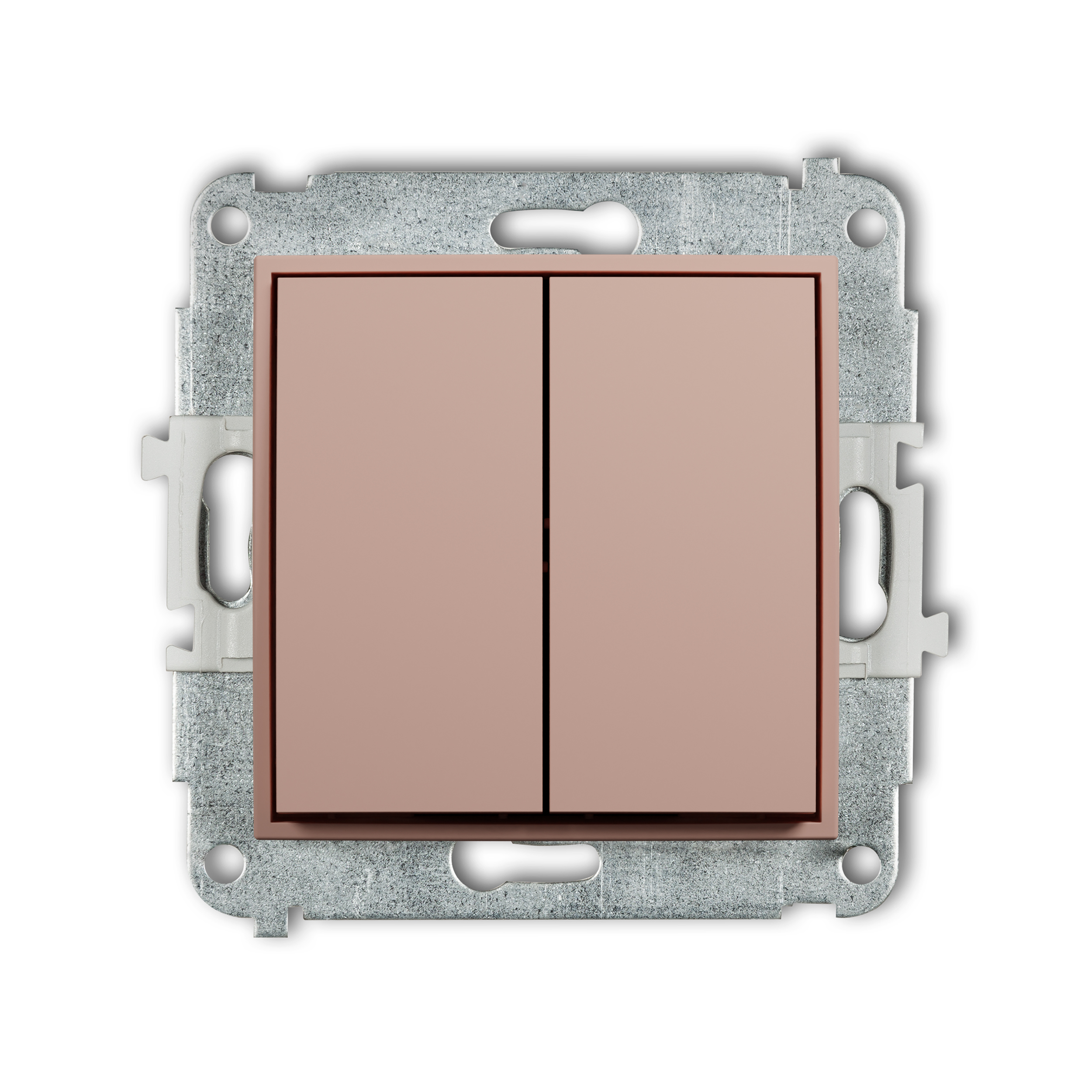

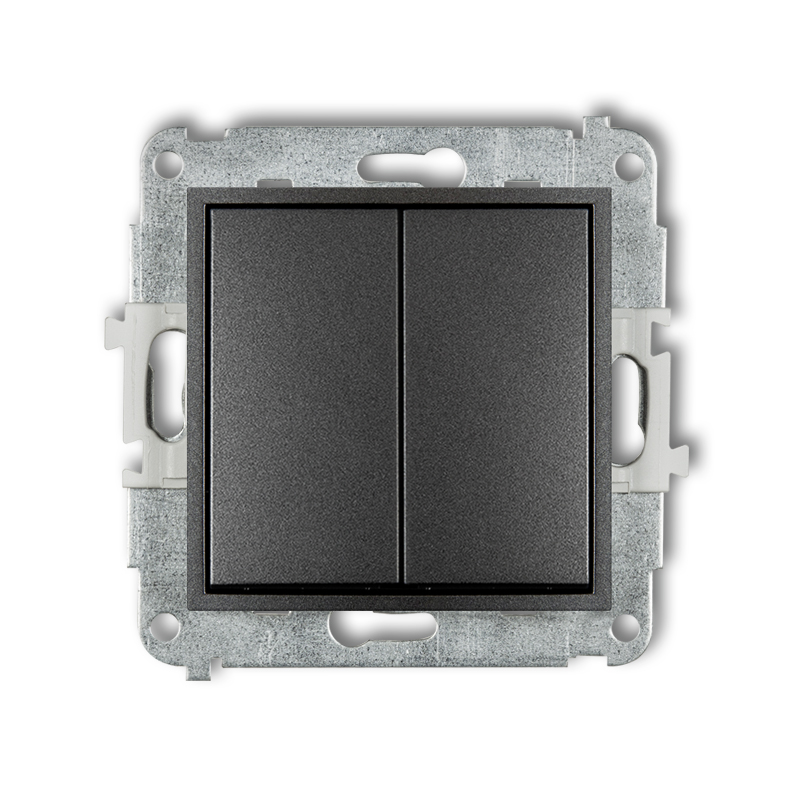

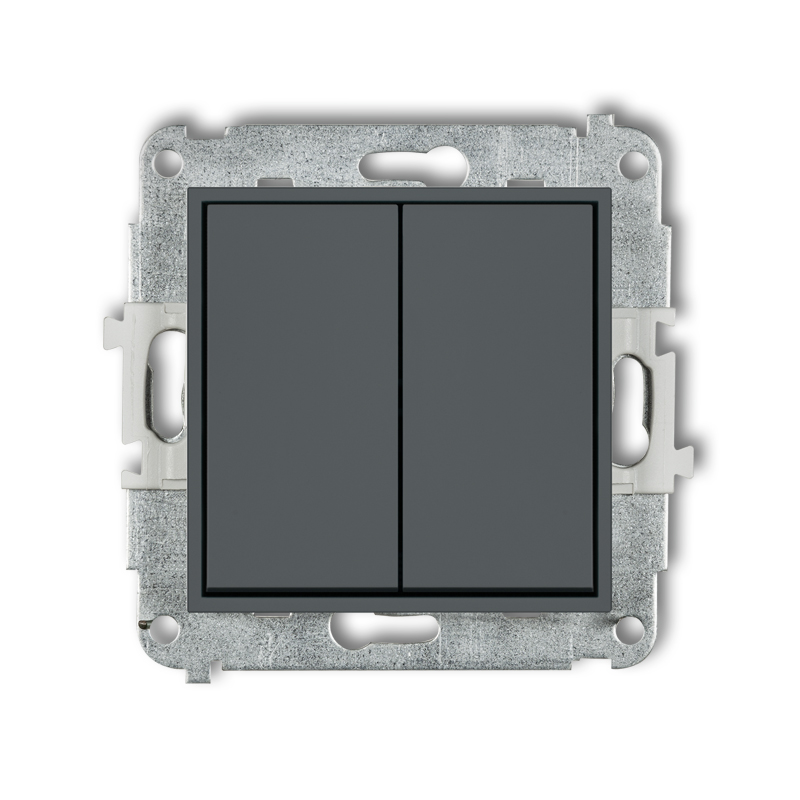

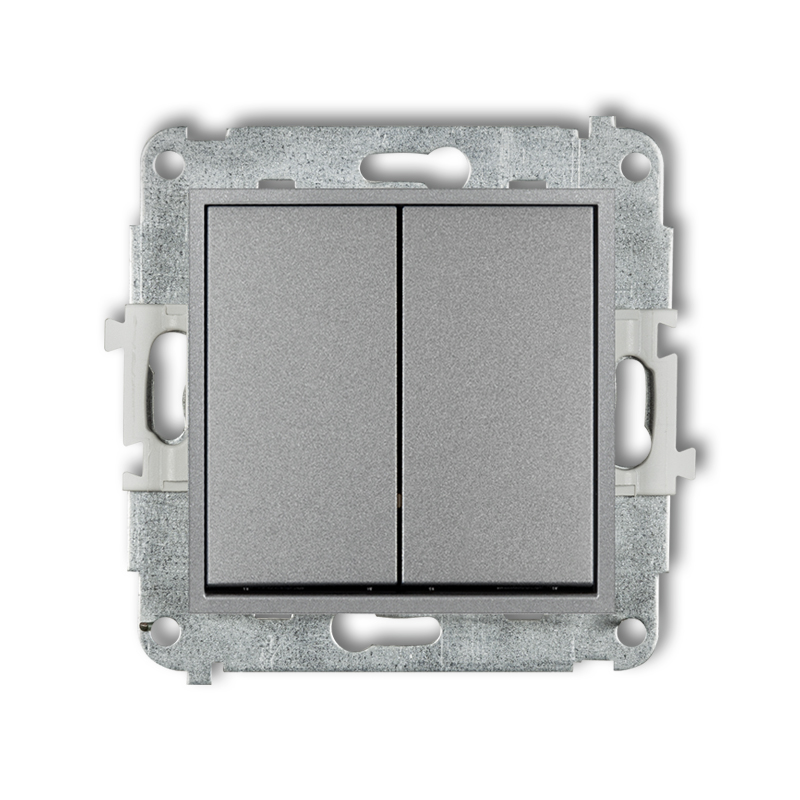

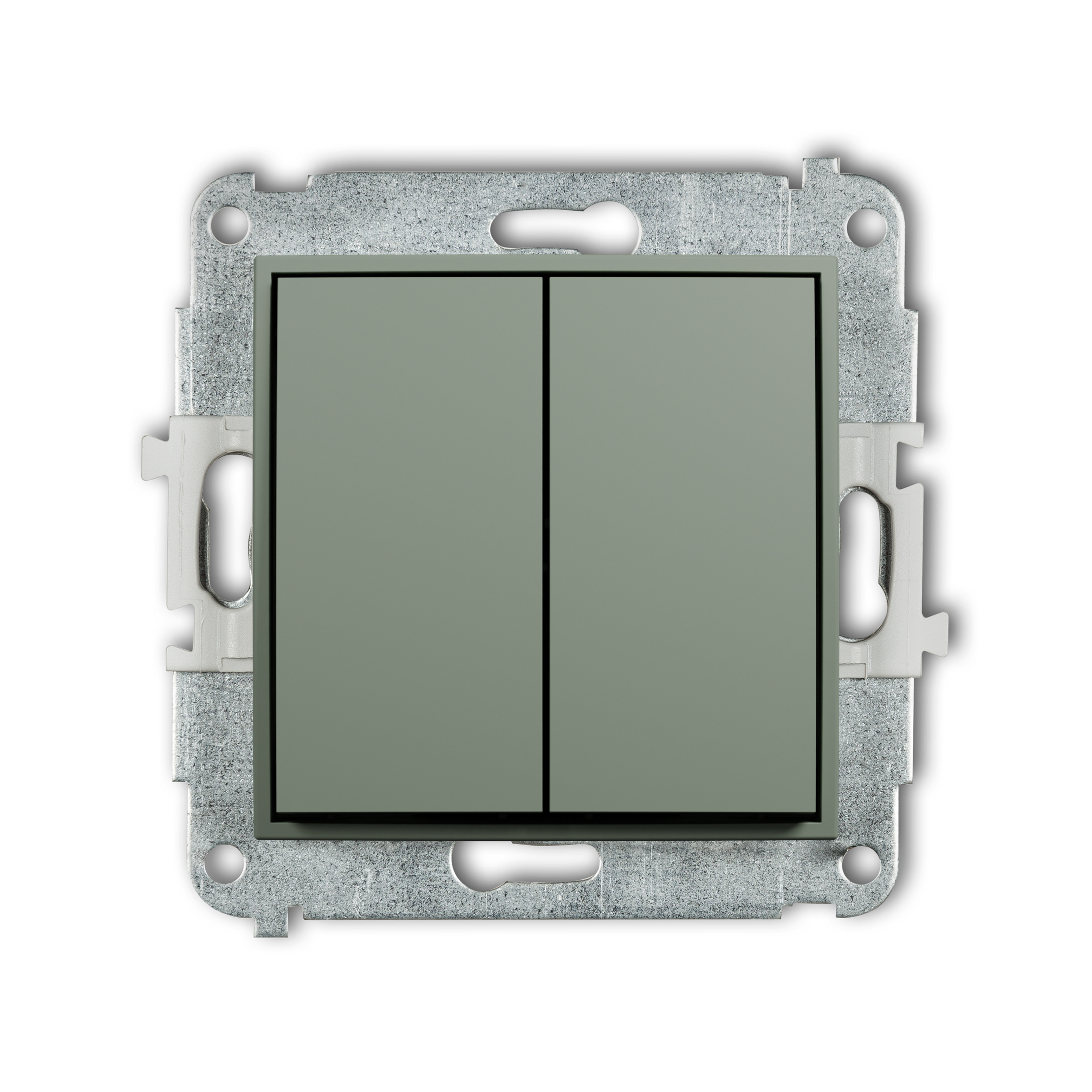

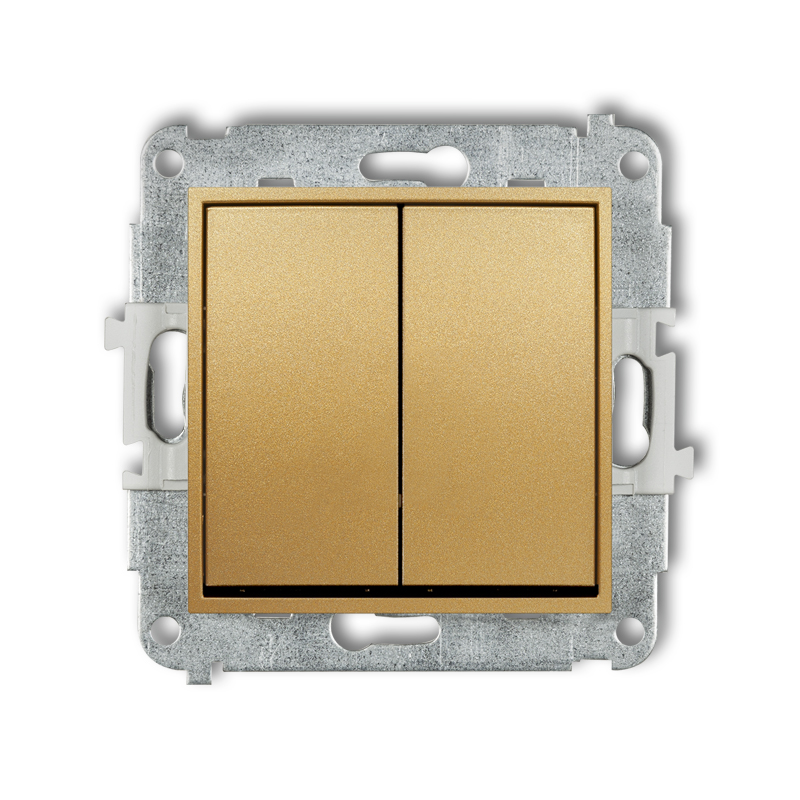

Two-circuit push button mechanism (double push button without pictograms, common power supply)
![MINI](/media/filer_public/49/e3/49e3e1e5-dbfa-4f33-aade-e2129631a0d8/mwp-441.jpg)
white
MWP-44.1
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
MINI switches are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all MINI switches besides the following switches: MWP-7, MWP-8, MWP-8.1, MWP-44.2, MWP-66, MWP-66.1, MWP-88, MWP-88.1, MWP-33, MWP-33.1, MWP-10.2, MWP-10.21.
MINI switches are also available in a hermetic version (IP44) - a sealant shall be bought separately to each switch. A sealant can go with all MINI switches besides the following switches: MWP-66, MWP-66.1, MWP-7, MWP-8, MWP-8.1, MWP-88, MWP-88.1.
The actual appearance of product may be different from the presented photographs.
See how switches in American style work on our You Tube channel.
Technical data
Protection index | IP 20 / IP 44 |
Rated current | 10 AX |
Rated voltage | 250 V~ |
Connection | Screw terminals |
UV resistance | Resistant |
![Technical image](/media/techdata/karlik_mini_%C5%82%C4%85cznik_podw%C3%B3jny_evZmdCB.jpg)
