Roller blind switch mechanism with mechanical lock (double push button without pictograms)
white
MWP-88.1
-
white
MWP-88.1
-

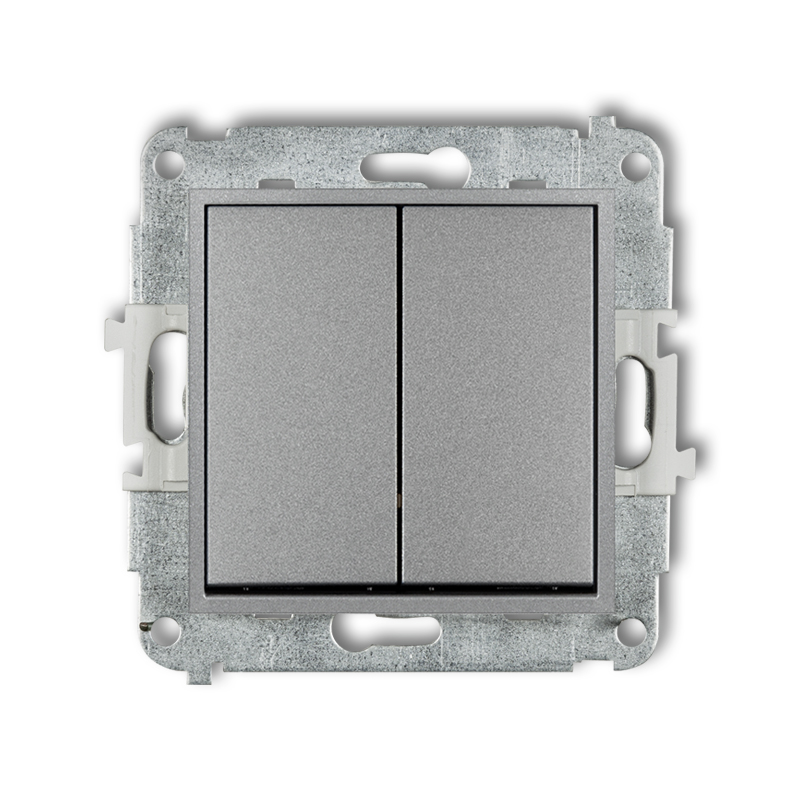

silver metallic
7MWP-88.1
-

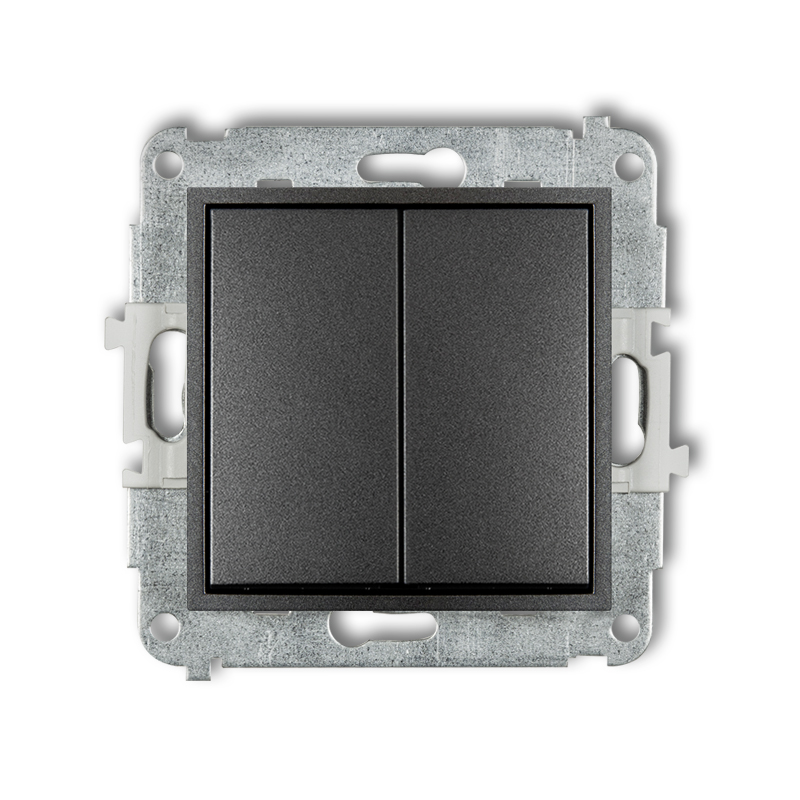

graphite
11MWP-88.1
-
matt black
12MWP-88.1
-
matt white
25MWP-88.1
-
matt grey
27MWP-88.1
-

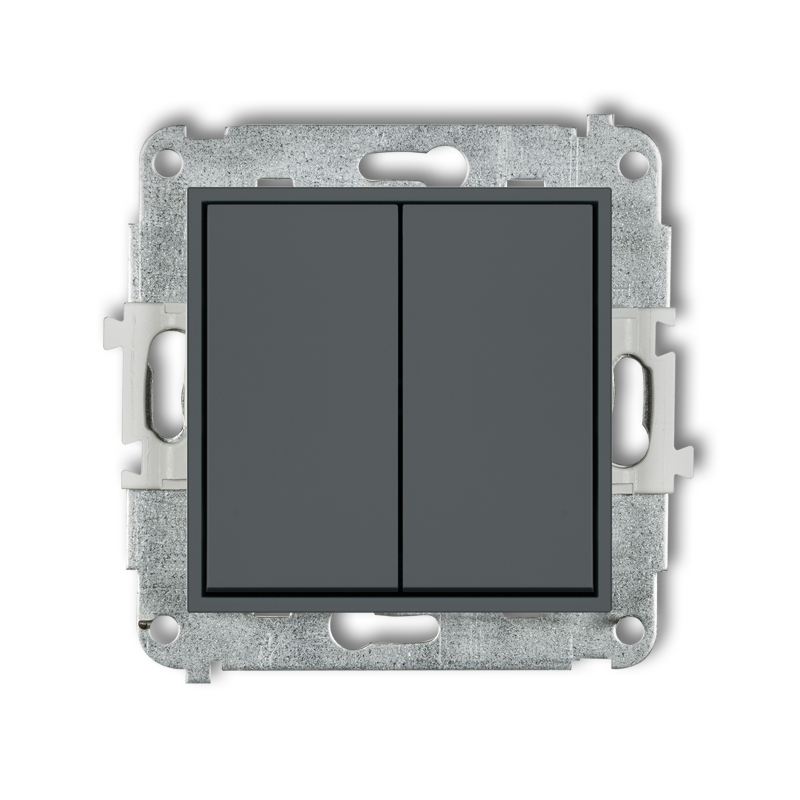

matt graphite
28MWP-88.1
-

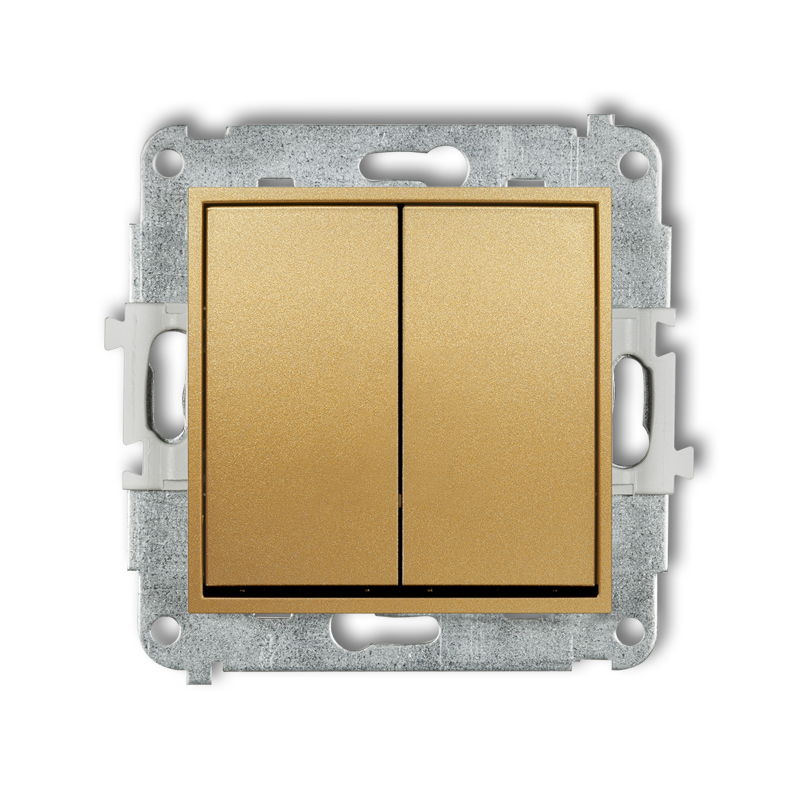

gold
29MWP-88.1
-
taupe
60MWP-88.1
-

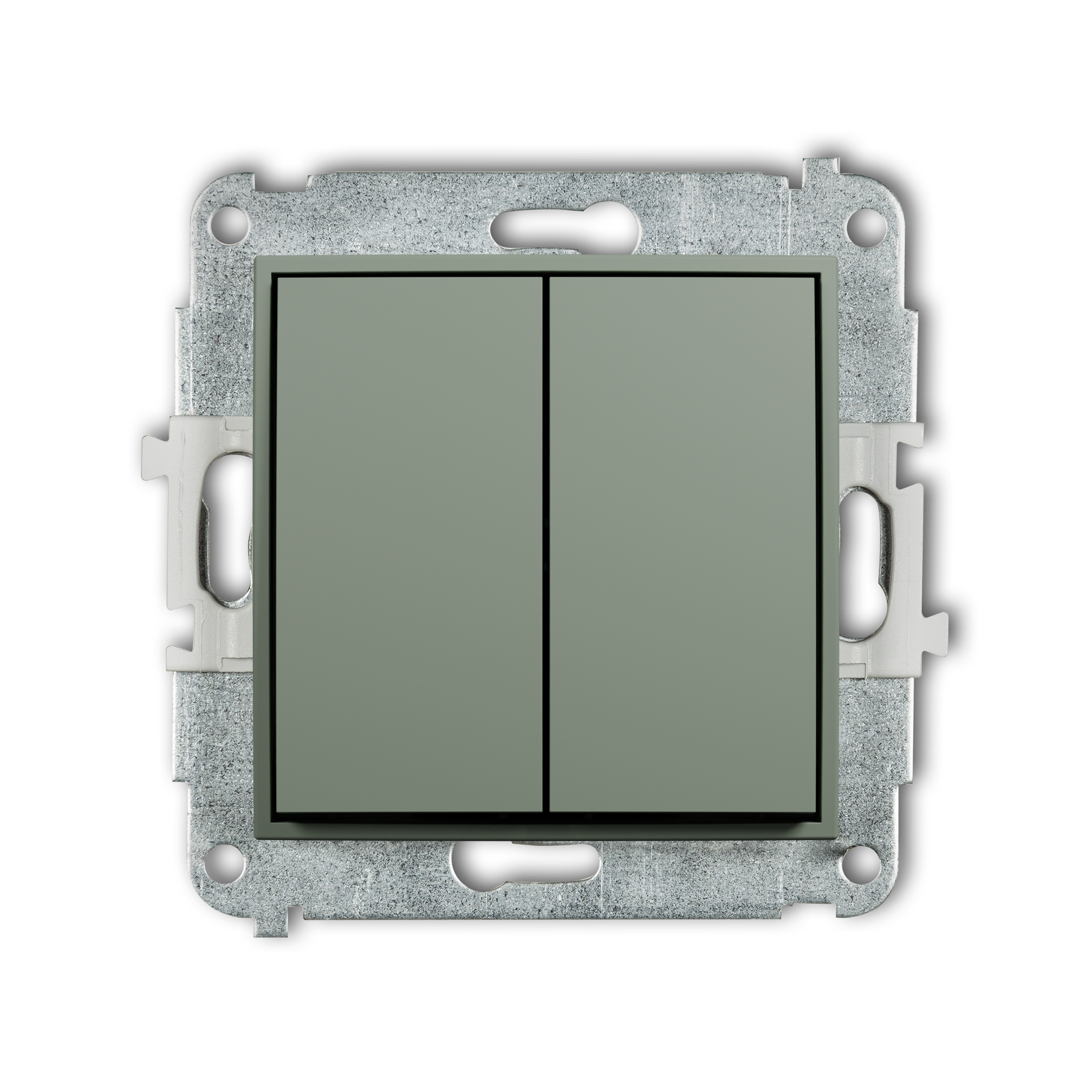

sage
61MWP-88.1
-
salmon
62MWP-88.1
-
terracotta
63MWP-88.1
-
navy blue
64MWP-88.1
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
Roller blind switch mechanism with mechanical lock has a cradle that alternates key switching, with which the blind / roller shutter moves without holding the key. The blind / shutter can be stopped at any time.
The connector should be used with rollers and blinds fitted with end switches or other safeguards preventing motor damage.
The actual appearance of product may be different from the presented photographs.
See how switches in American style work on our You Tube channel.
Technical data
| Protection index | IP 20 |
| Rated current | 10 AX |
| Rated voltage | 250 V~ |
| Connection | Screw terminals |
| UV resistance | Resistant |
