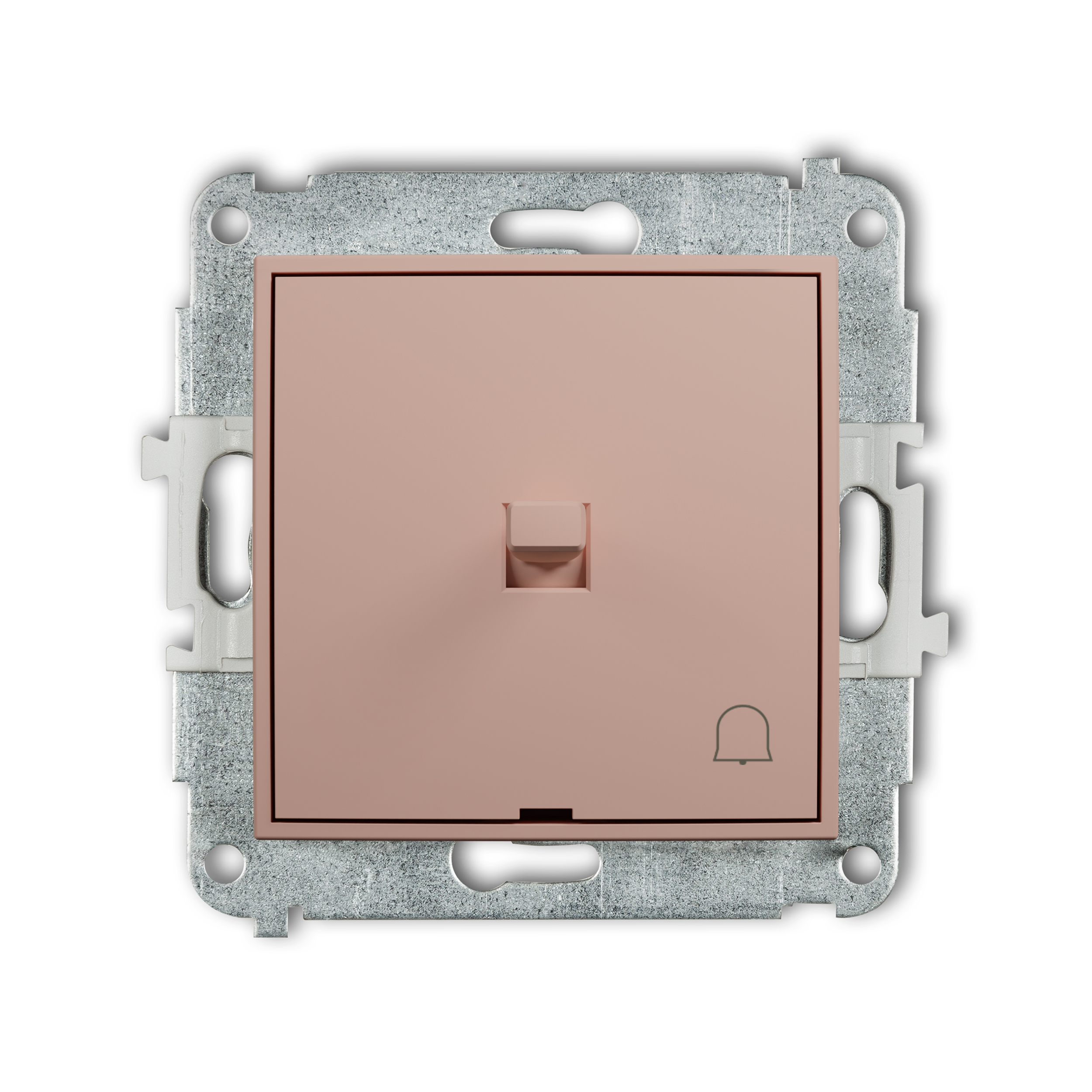

American-style single push button "bell" mechanism
white
MWPUS-4
-
white
MWPUS-4
-
silver metallic
7MWPUS-4
-
graphite
11MWPUS-4
-
matt black
12MWPUS-4
-
matt white
25MWPUS-4
-
matt grey
27MWPUS-4
-
matt graphite
28MWPUS-4
-
gold
29MWPUS-4
-
taupe
60MWPUS-4
-
sage
61MWPUS-4
-
salmon
62MWPUS-4
-
terracotta
63MWPUS-4
-
navy blue
64MWPUS-4
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
MINI switches in American style are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all MINI switches besides the following switches: MWPUS-8, MWPUS-44.2, MWPUS-33, MWPUS-33.1, MWPUS-10.2, MWPUS-10.21.
MINI switches in american style are not available in hermetic type (IP44) - sealant can not be used with the American style switches mechanisms.
The actual appearance of product may be different from the presented photographs.
See how switches in American style work on our Youtube channel.
Technical data
| Protection index | IP 20 |
| Rated current | 10 AX |
| Rated voltage | 250 V~ |
| Connection | Screw terminals |
| UV resistance | Resistant |
