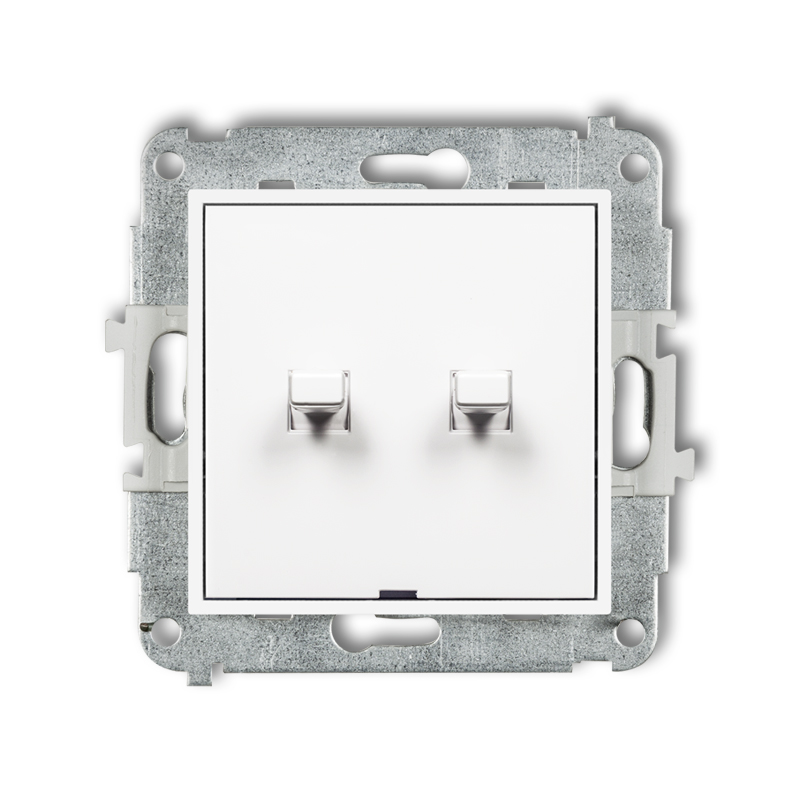

American-style double push button switch mechanism (double push button without pictograms, separate power supply)
white
MWPUS-44.2
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
MINI switches in American style are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all MINI switches besides the following switches: MWPUS-8, MWPUS-44.2, MWPUS-33, MWPUS-33.1, MWPUS-10.2, MWPUS-10.21.
MINI switches in american style are not available in hermetic type (IP44) - sealant can not be used with the American style switches mechanisms.
The actual appearance of product may be different from the presented photographs.
See how switches in American style work on our Youtube channel.
Technical data
Protection index | IP 20 |
Rated current | 10 AX |
Rated voltage | 250 V~ |
Connection | Screw terminals |
UV resistance | Resistant |
Product variants
-
American-style single switch mechanism
white
MWPUS-1
-
American-style single push button "light" mechanism
matt black
12MWPUS-5
-
American-style roller blind switch mechanism (double push button without pictograms)
matt grey
27MWPUS-8
-
American-style single pole with two-way switch mechanism (common power supply)
matt graphite
28MWPUS-10.1
-
American-style single push button "bell" mechanism (single push button without pictogram)
sage
61MWPUS-4.1
-

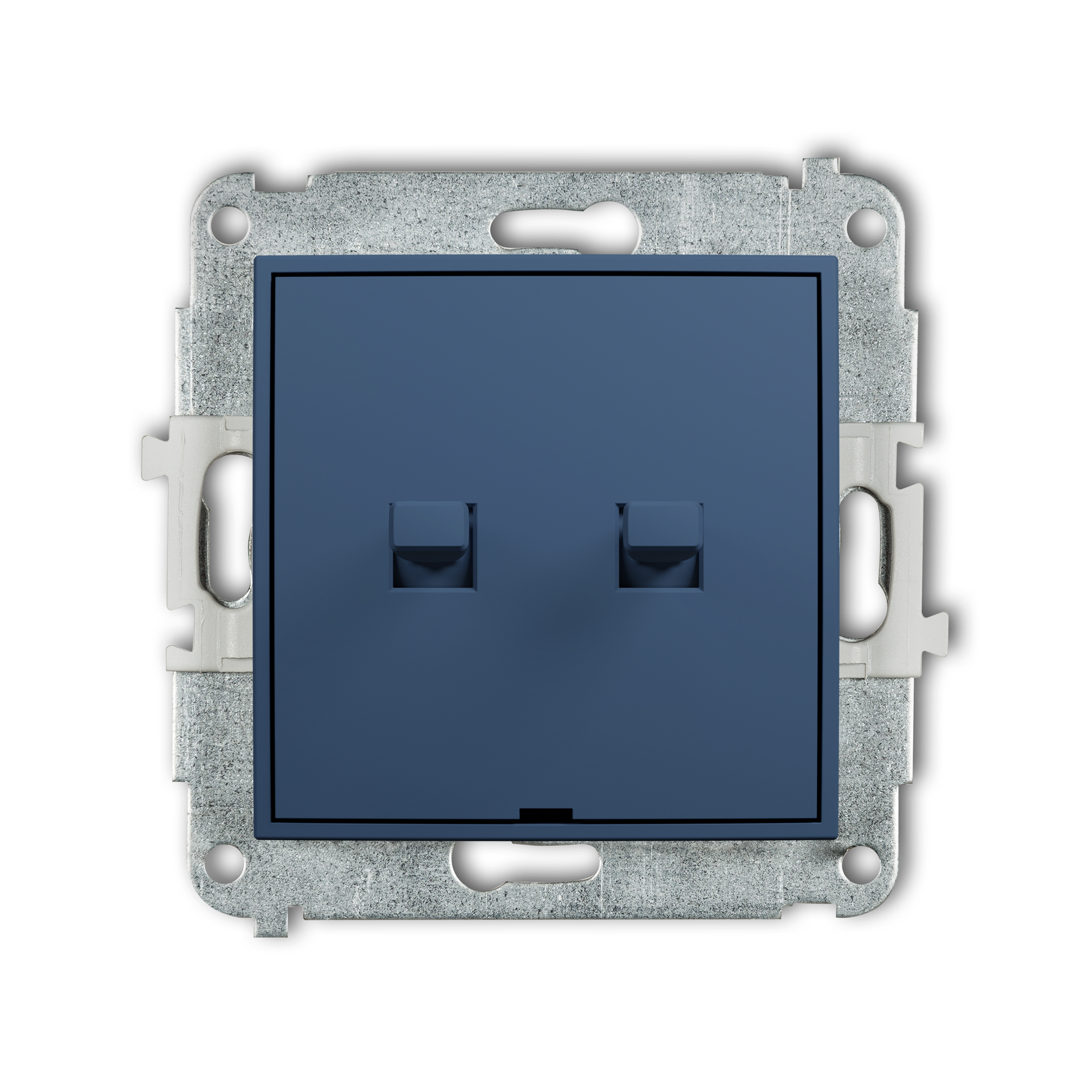

American-style double two-way switch mechanism (double push button without pictograms)
