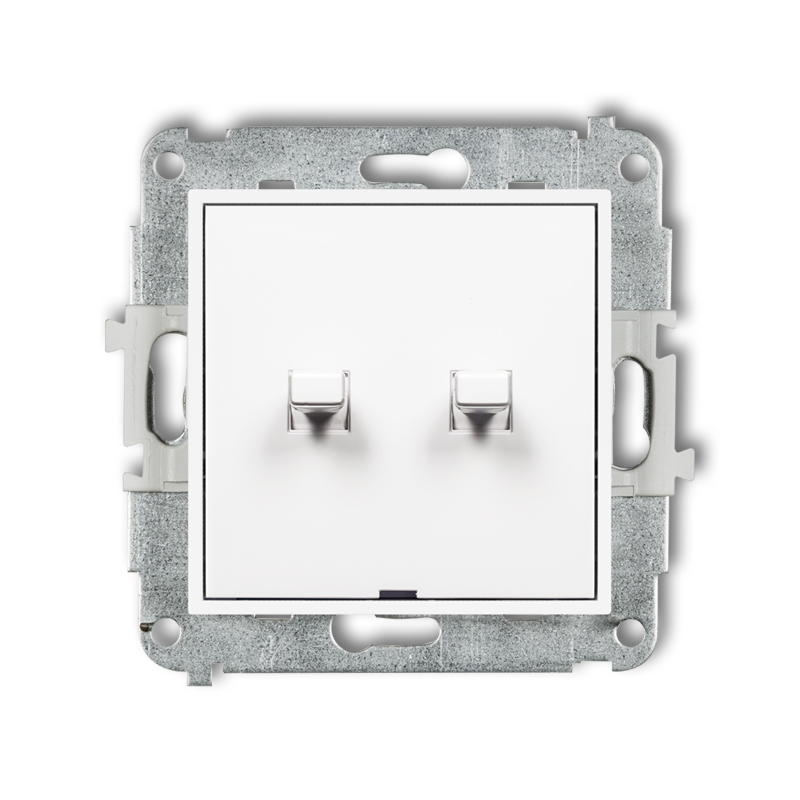

American-style roller blind switch mechanism (double push button without pictograms)
white
MWPUS-8
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
MINI switches in American style are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all MINI switches besides the following switches: MWPUS-8, MWPUS-44.2, MWPUS-33, MWPUS-33.1, MWPUS-10.2, MWPUS-10.21.
MINI switches in american style are not available in hermetic type (IP44) - sealant can not be used with the American style switches mechanisms.
The actual appearance of product may be different from the presented photographs.
See how switches in American style work on our Youtube channel.
Technical data
Protection index | IP 20 |
Rated current | 10 AX |
Rated voltage | 250 V~ |
Connection | Screw terminals |
UV resistance | Resistant |
Product variants
-
American-style double two-way switch mechanism (double push button without pictograms)
white
MWPUS-33.1
-
American-style single switch mechanism
matt black
12MWPUS-1
-
American-style double push button switch mechanism (double push button without pictograms, separate power supply)
matt grey
27MWPUS-44.2
-
American-style single switch mechanism
matt graphite
28MWPUS-1
-
American-style single push button "bell" mechanism (single push button without pictogram)
taupe
60MWPUS-4.1
-
American-style single pole with two-way switch mechanism (double push button without pictograms, separate power supply)
salmon
62MWPUS-10.21
Complementary products
Related products
-
Double two-way switch mechanism (double push button without pictograms)
white
MWP-33.1
-
1-gang universal square plastic frame
matt black
12MR-1
-
Double loudspeaker socket (2,5 mm2) mechanism
matt grey
27MGG-2
-
Single telephone socket 1xRJ11, tool-less + single computer socket mechanism 1xRJ45, cat. 5e, 8-contact
matt graphite
28MGTK
-
Single socket with the 2P+Z earth mechanism (without increased contact protection/shutter)
salmon
62MGP-1z
-

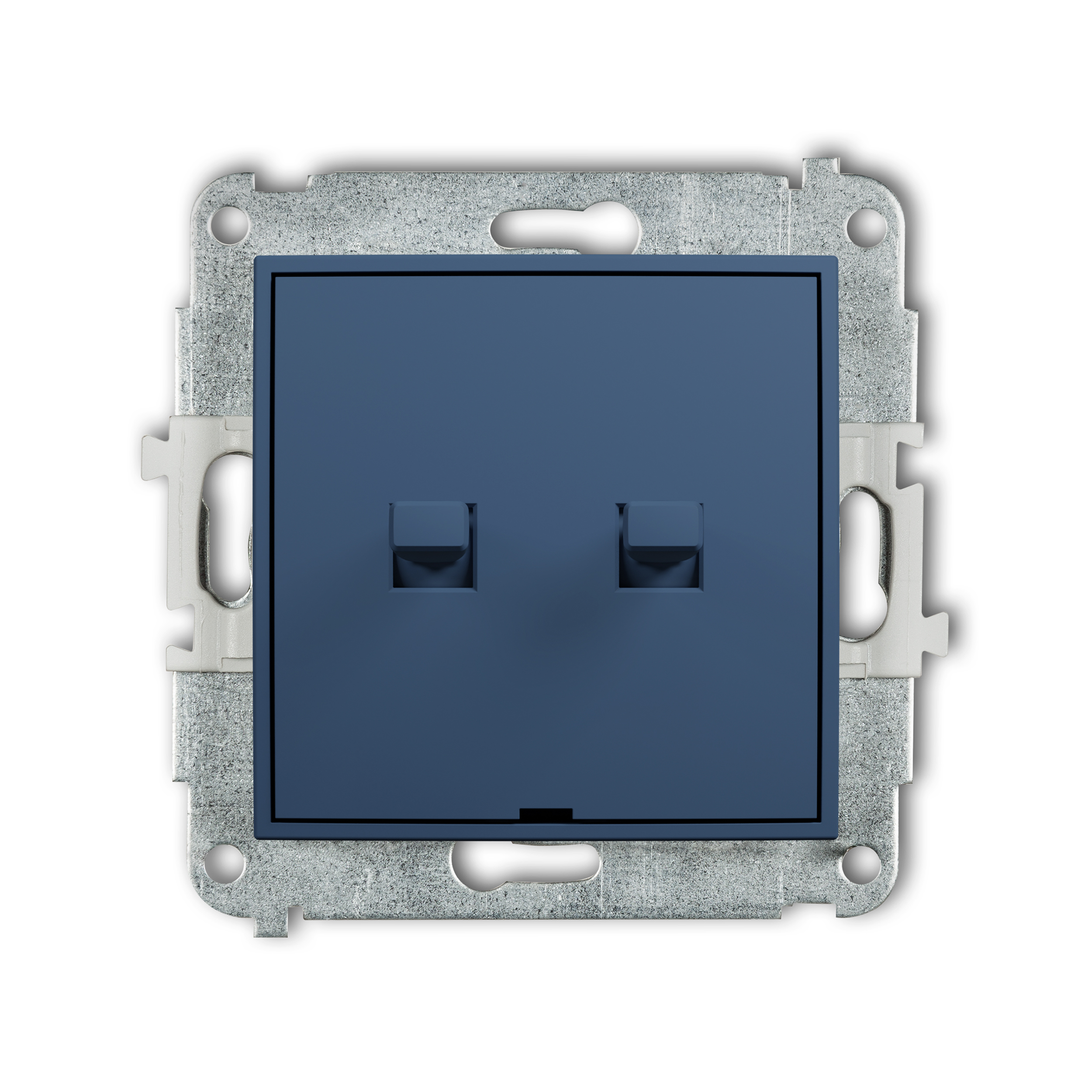

Roller blind switch mechanism
