Radio/TV final socket mechanism the 2 dB
white
DG2K
-
white
DG2K
-
beige
1DG2K
-
silver metallic
7DG2K
-

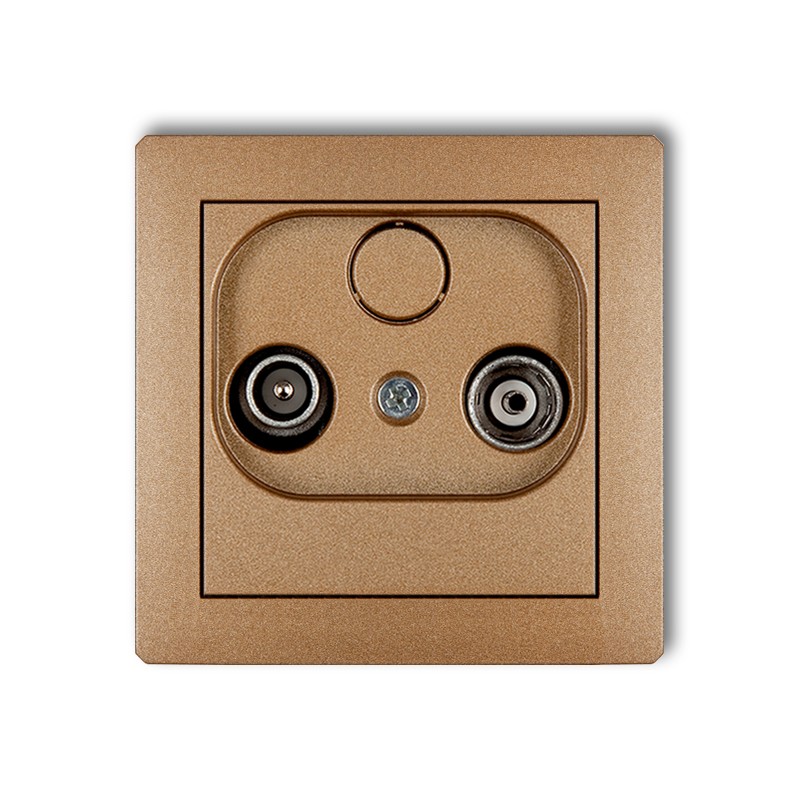

gold metallic
8DG2K
-

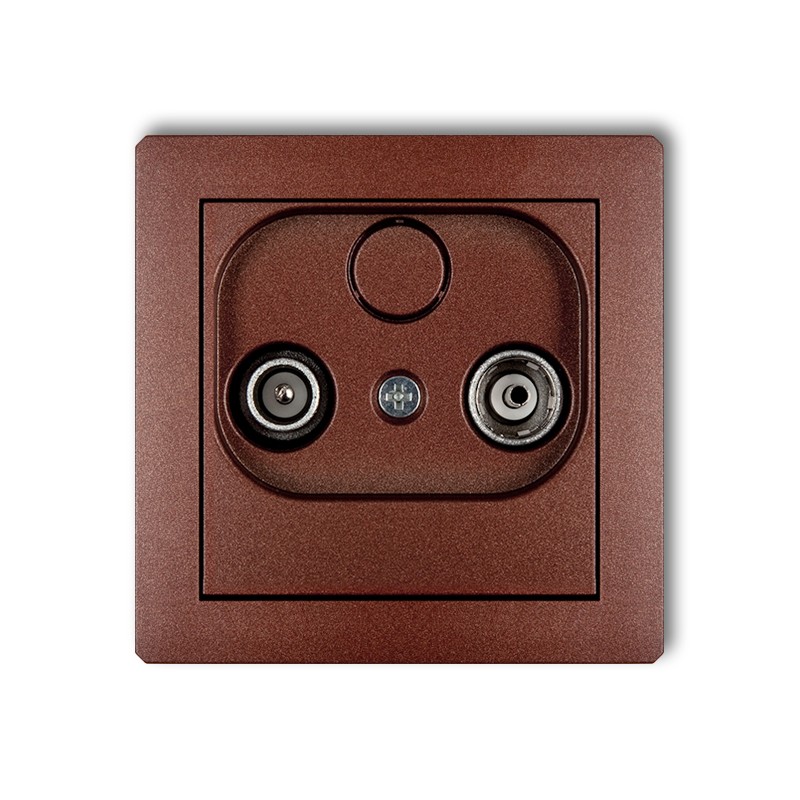

brown metallic
9DG2K
-

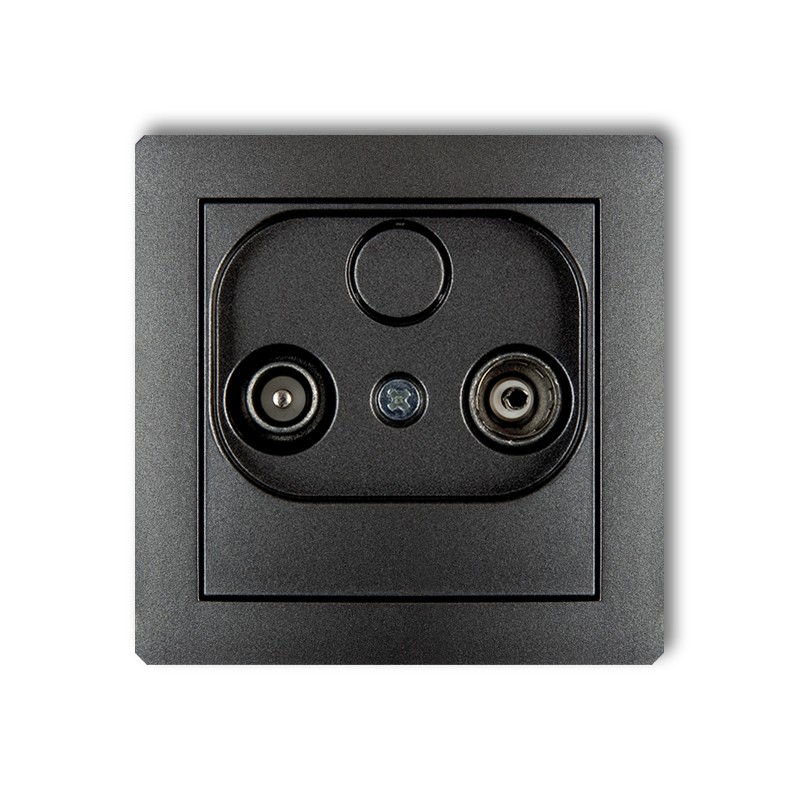

graphite
11DG2K
-
matt black
12DG2K
-

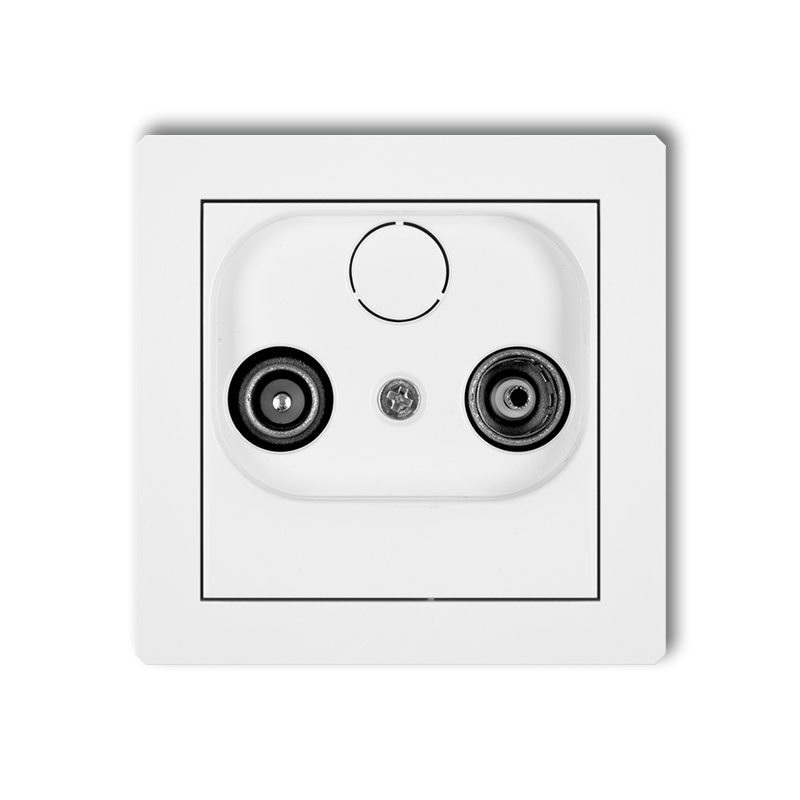

matt white
25DG2K
-

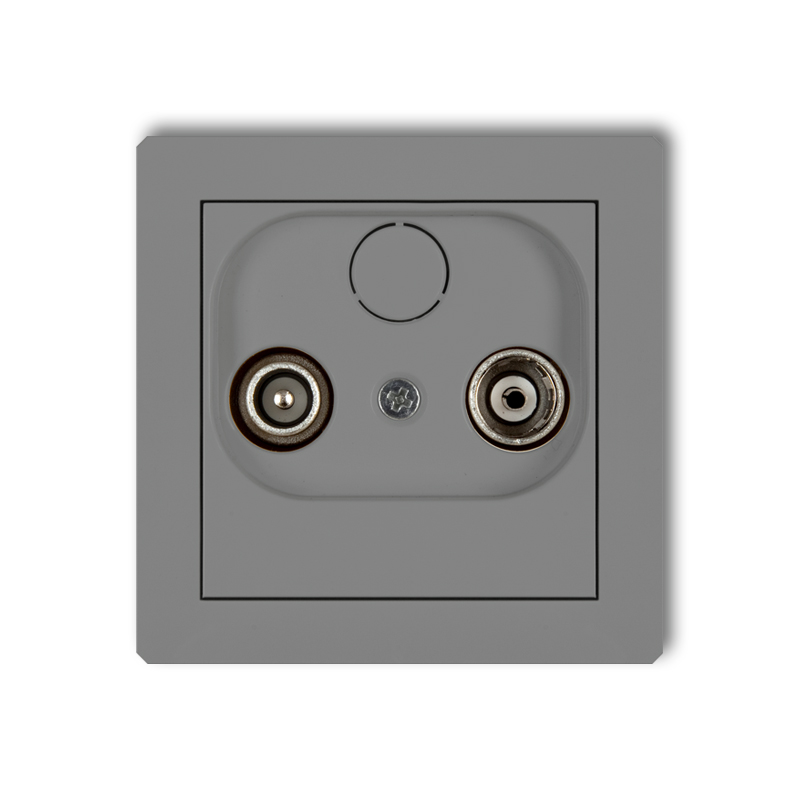

matt grey
27DG2K
-

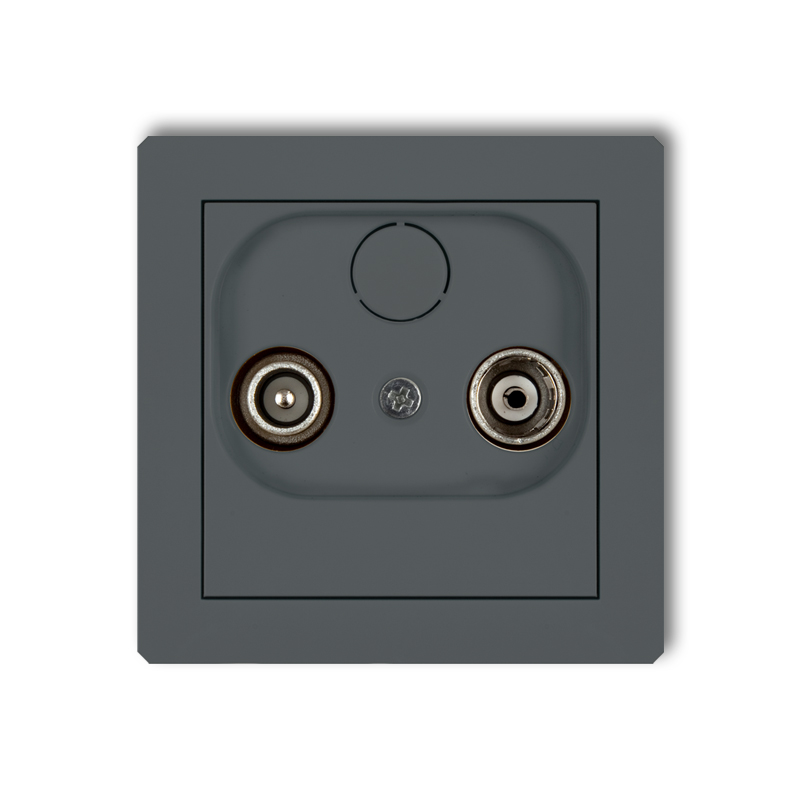

matt graphite
28DG2K
-

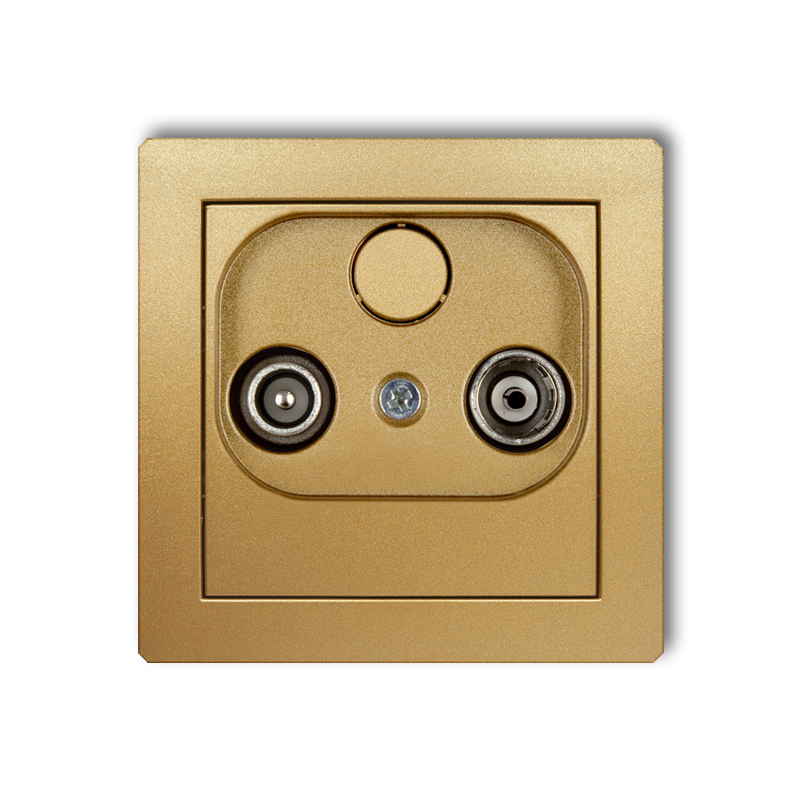

gold
29DG2K
Product description
Downloads
Configurator
DECO mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Input circut frequency range 1 | 5 ÷ 862 MHz |
| TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
| Radio circut frequency range | 88 ÷ 108 MHz |
| Compression damping | 2 dB |
| Wave impedance (characteristic) | 75 Om |
| Connection | Screw terminals |
| UV resistance | Resistant |
