Electronic dimmer push-rotary mechanism
white
DRO-1
-
white
DRO-1
-

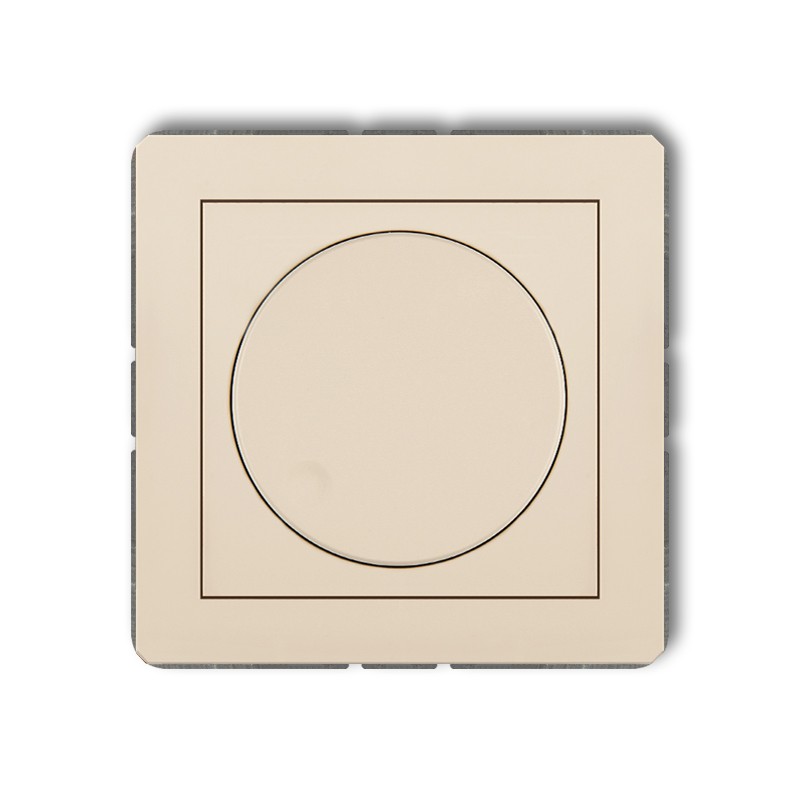

beige
1DRO-1
-
silver metallic
7DRO-1
-

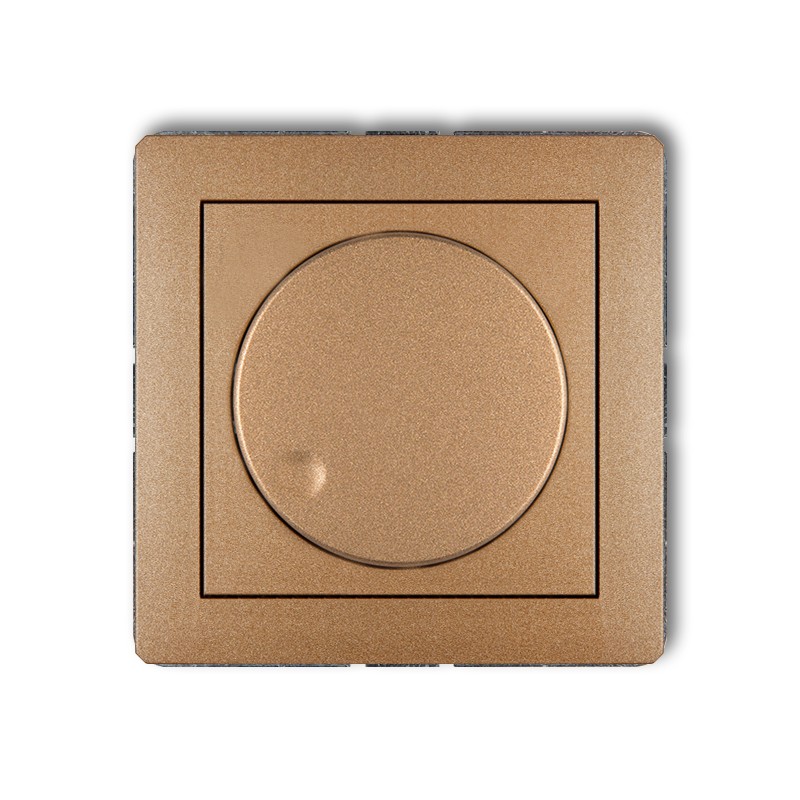

gold metallic
8DRO-1
-

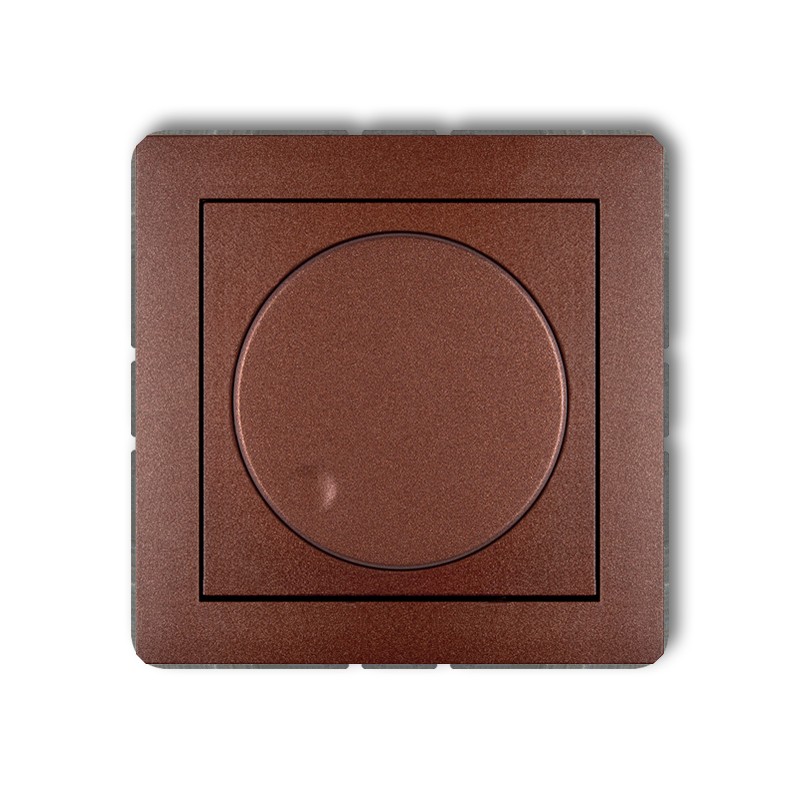

brown metallic
9DRO-1
-
graphite
11DRO-1
-
matt black
12DRO-1
-

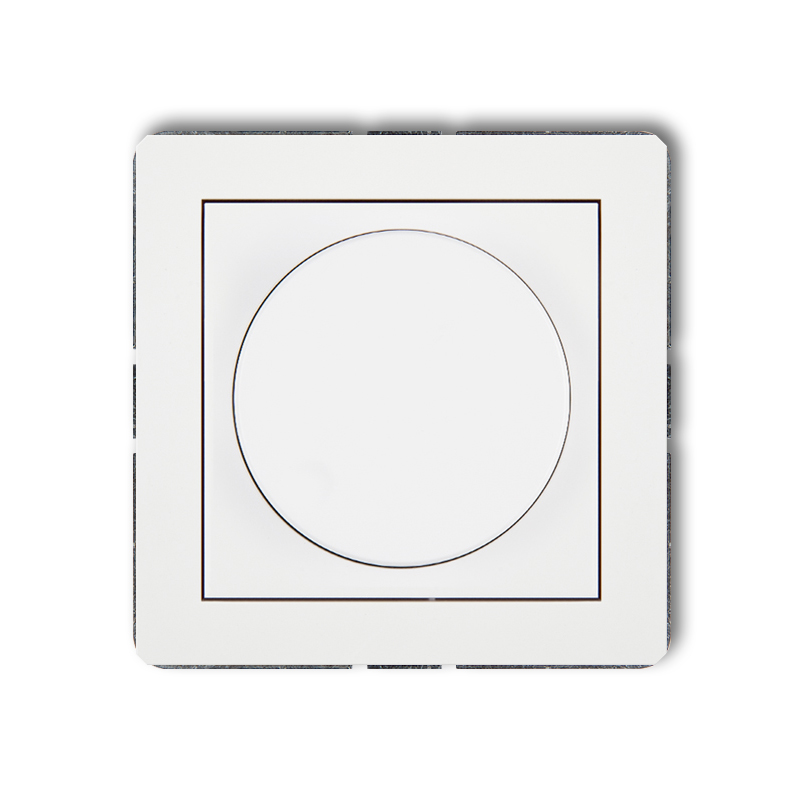

matt white
25DRO-1
-
matt grey
27DRO-1
-

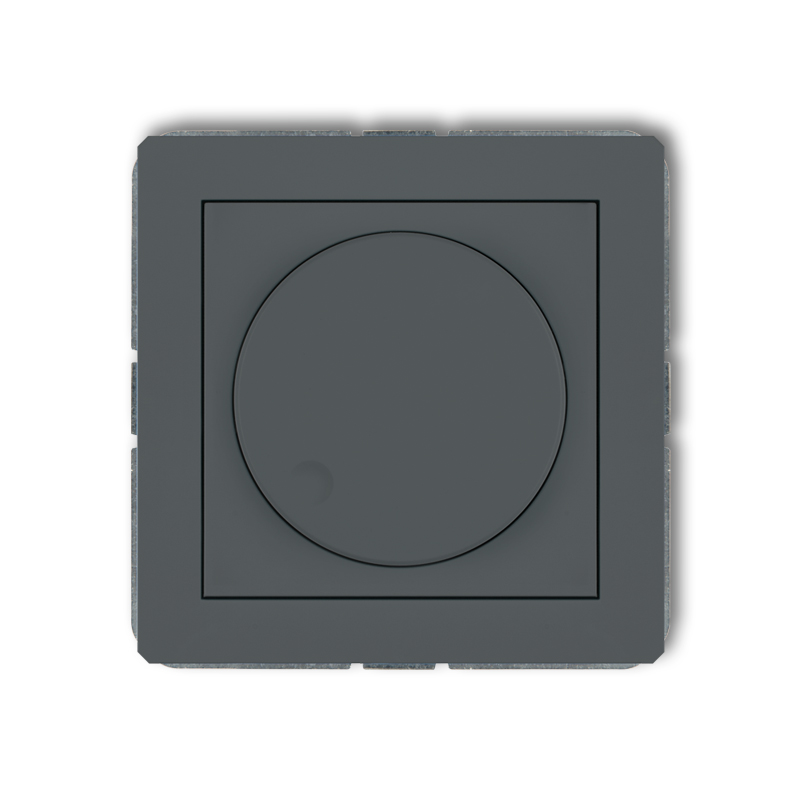

matt graphite
28DRO-1
-

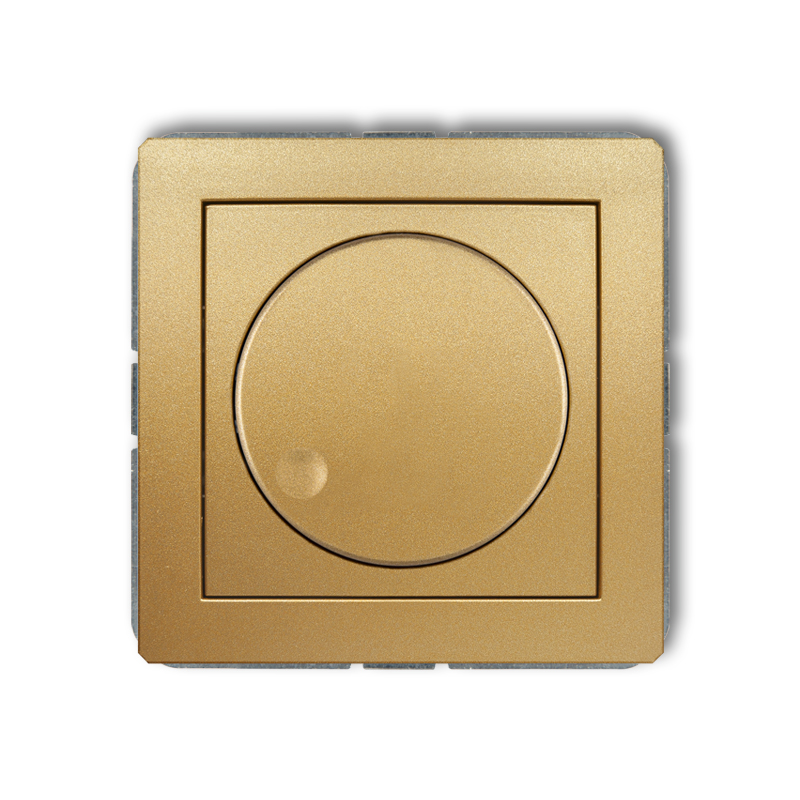

gold
29DRO-1
Product description
Downloads
Configurator
DECO mechanisms and frames are sold separately.
Electronic lightning controller with push and rotary button (dimmer switch) enables stepless adjustment of light intensity from 0 to 100% of full power of the illumination and it can be used with almost every frame. With electricity consumption proportionate to the lightning level it increases comfort and daily electricity savings.
Lightning controller is used to control illumination level of typical incandescent lightning. Controlling involves the use of potentiometer with switch. The configuration enables intelligent control of lightning systems and is convenient and economic in use. The controller is equipped with overload and short-circuit protection.
Note!
Connecting two regulators in a two-way system may damage regulators.
More information in the DOWNLOADS section.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Power supply | 230 V~ 50 Hz |
| Tolerance of voltage supply | -15 ÷ +10% |
| Light control switch and regulation on potentiometer | 10 ÷ 100% |
| Cooperation with load | convectional incandescent, halogen 230 V~, low voltage halogen 12 V (with conventional and toroidal tranformer) |
| Load capacity | 40 ÷ 400 W |
| Scope of regulation | 5 ÷ 40°C |
| Control unit | triac |
| Number of connection clamps | 3 |
| Cross section of connection cables | max 1,5 mm2 |
| Fixing of the casing | standard flash-mounted wall box Ø 60 mm |
| Temperature working range | from -20°C to +45°C |
| Withstand voltage | 2 KV |
| Safety class | II |
| Surge voltage category | II |
| Contamination level | 2 |
Product variants
Complementary products
Related products
-
Electronic motion sensor mechanism
white
DCR-1
-

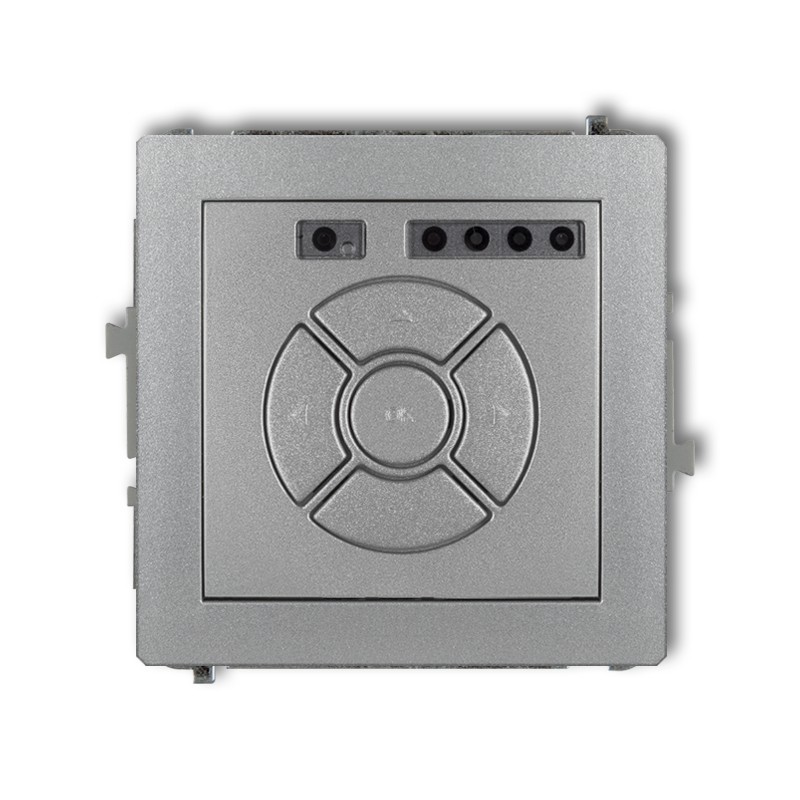

Electronic control roller shutter mechanism (local control)
silver metallic
7DSR-1
-
Electronic control roller shutter (local control, remote control, zone control)
silver metallic
7DSR-3
-
Electronic temperature controller mechanism with underfloor sensor
graphite
11DRT-1
-

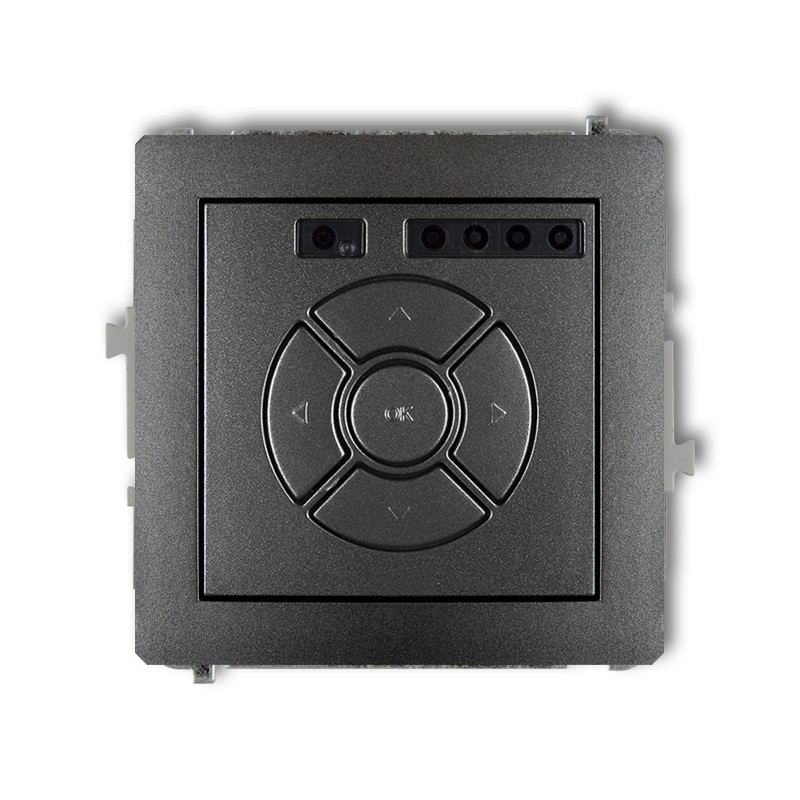

Electronic control roller shutter mechanism (local control and remote control)
