Electronic temperature controller mechanism with underfloor sensor
white
DRT-1
-
white
DRT-1
-

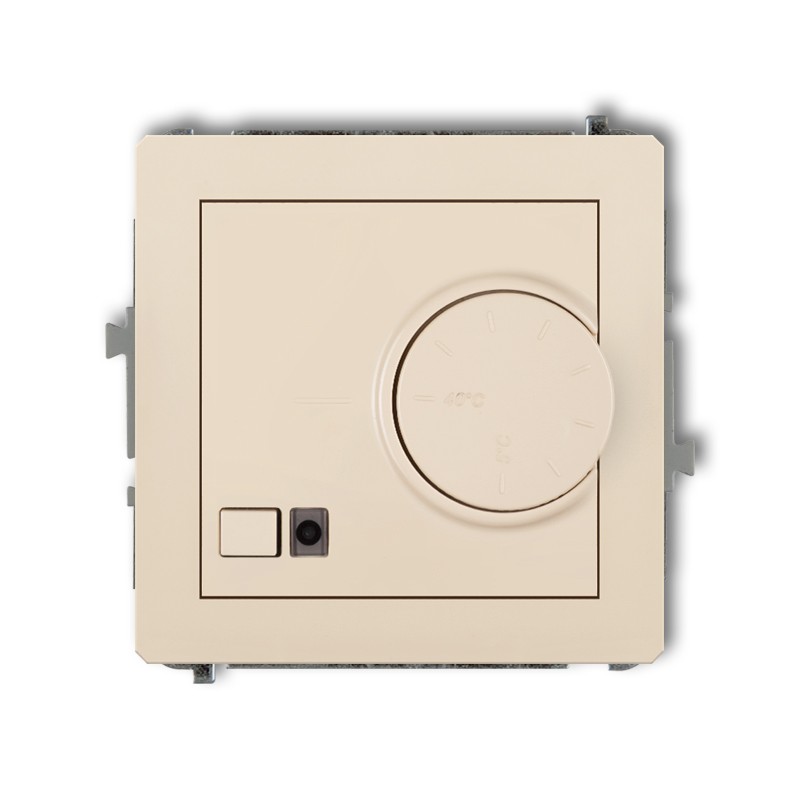

beige
1DRT-1
-

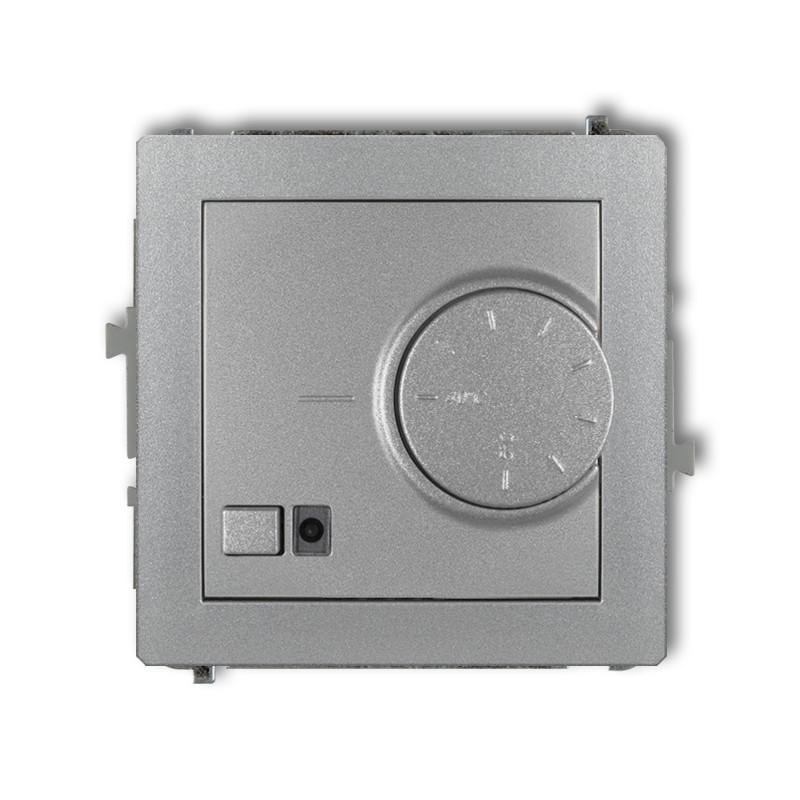

silver metallic
7DRT-1
-

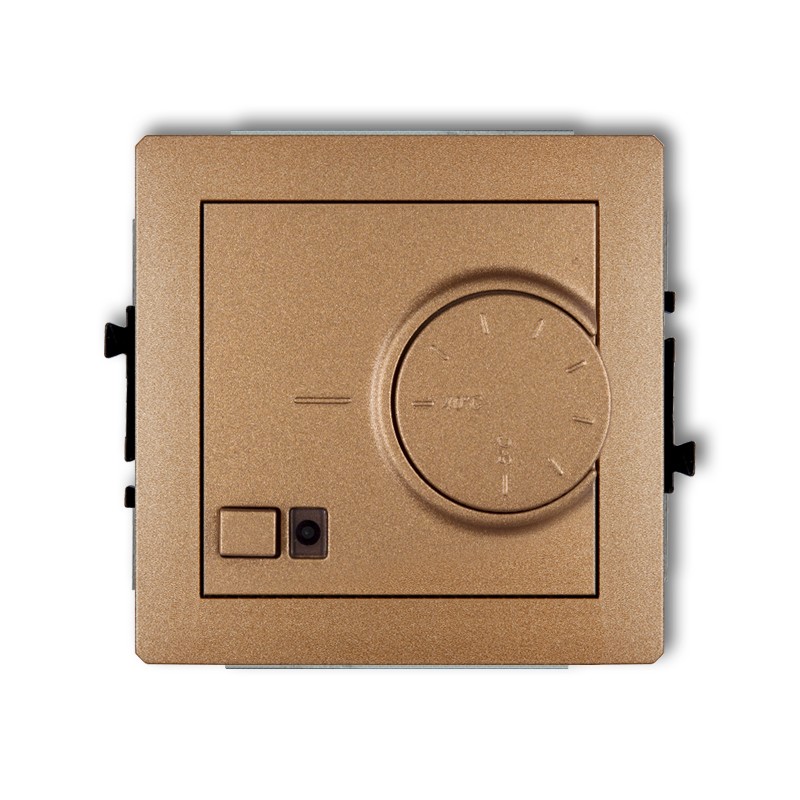

gold metallic
8DRT-1
-

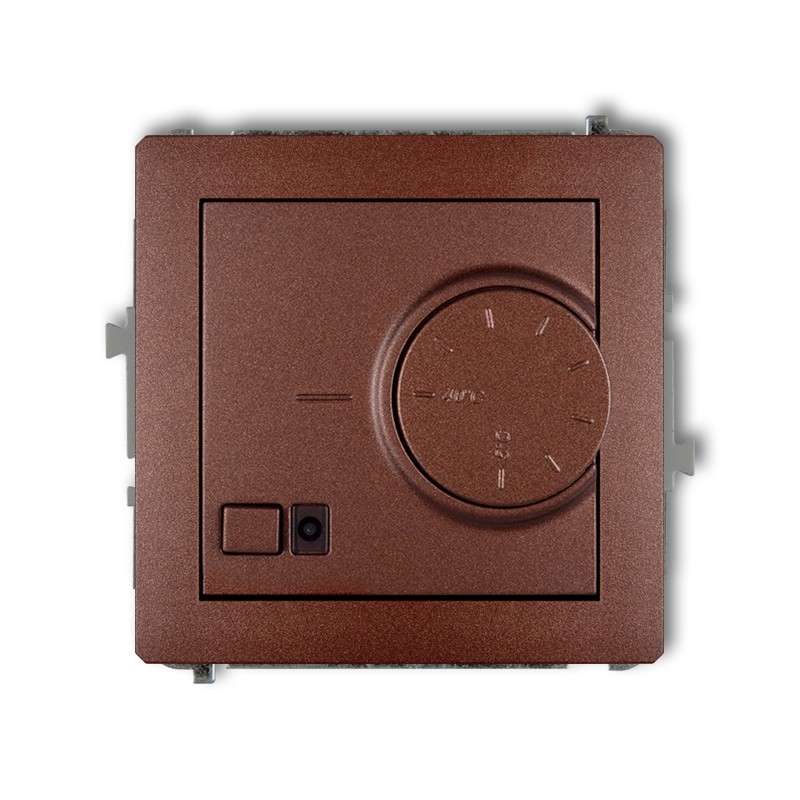

brown metallic
9DRT-1
-

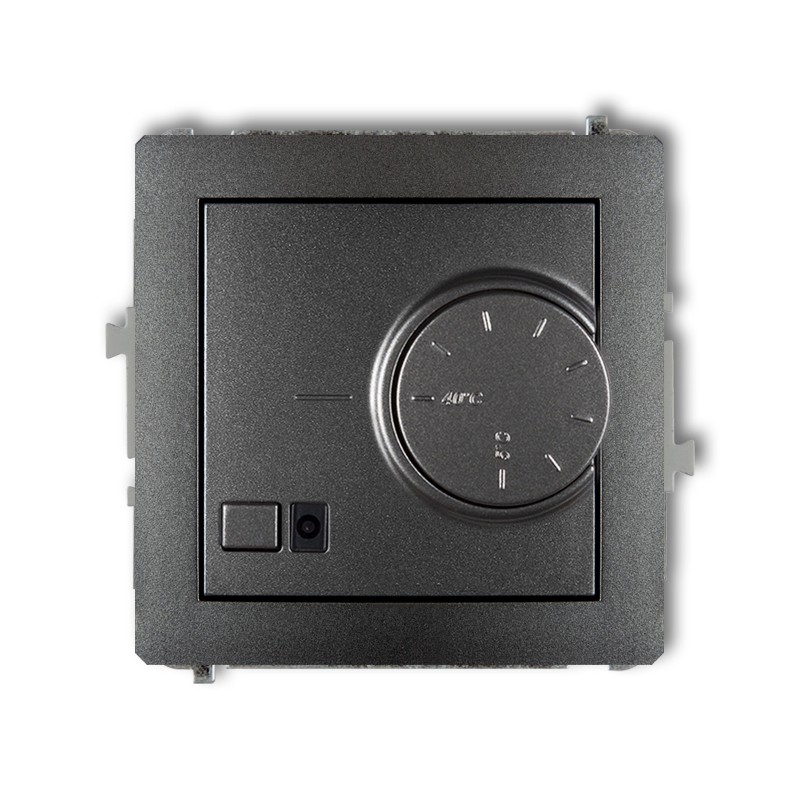

graphite
11DRT-1
-
12DRT-1
-

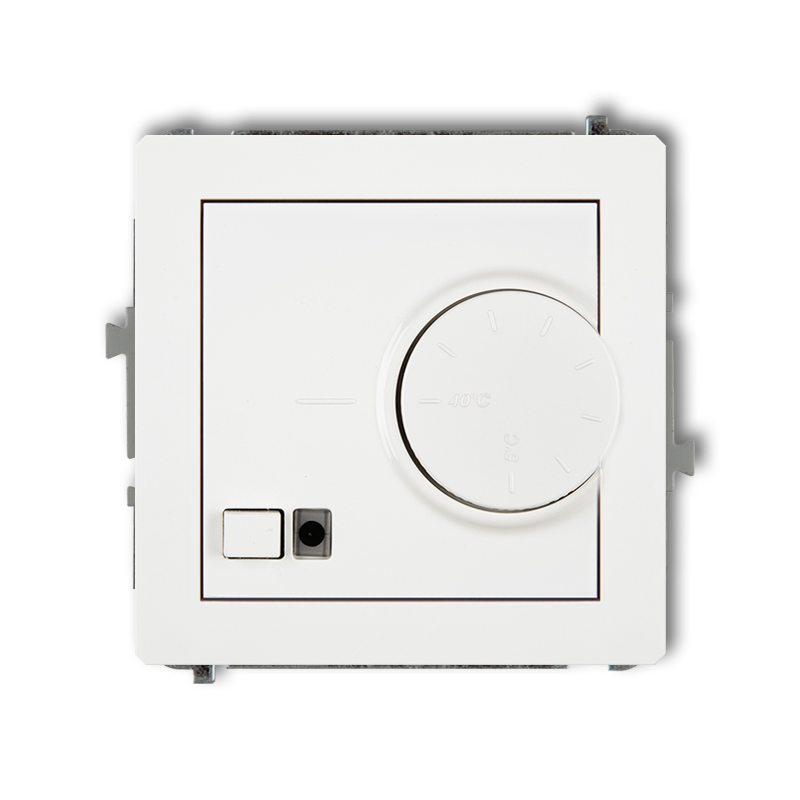

matt white
25DRT-1
-
matt grey
27DRT-1
-

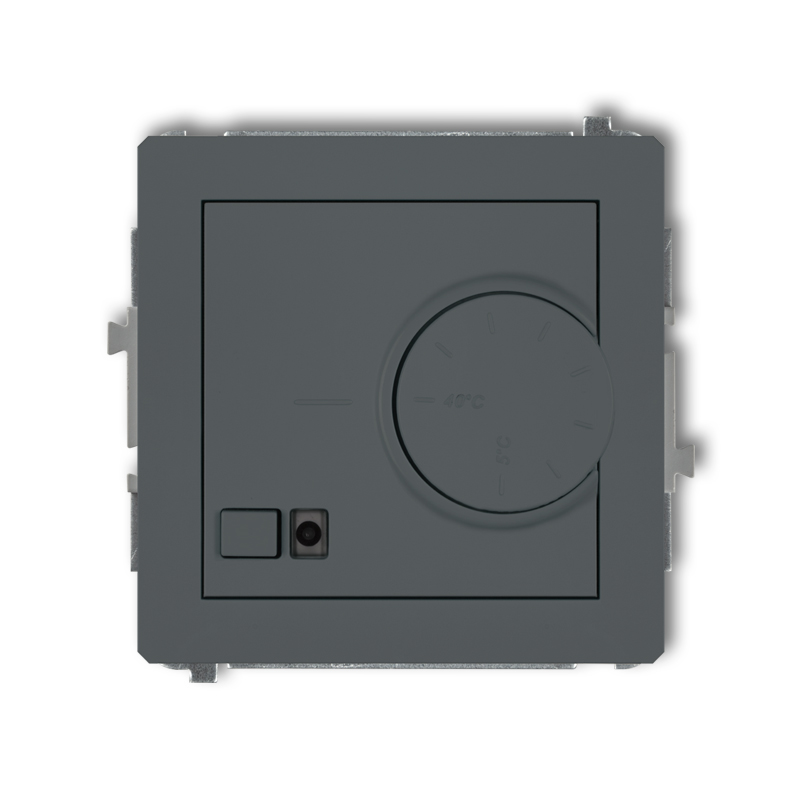

matt graphite
28DRT-1
-

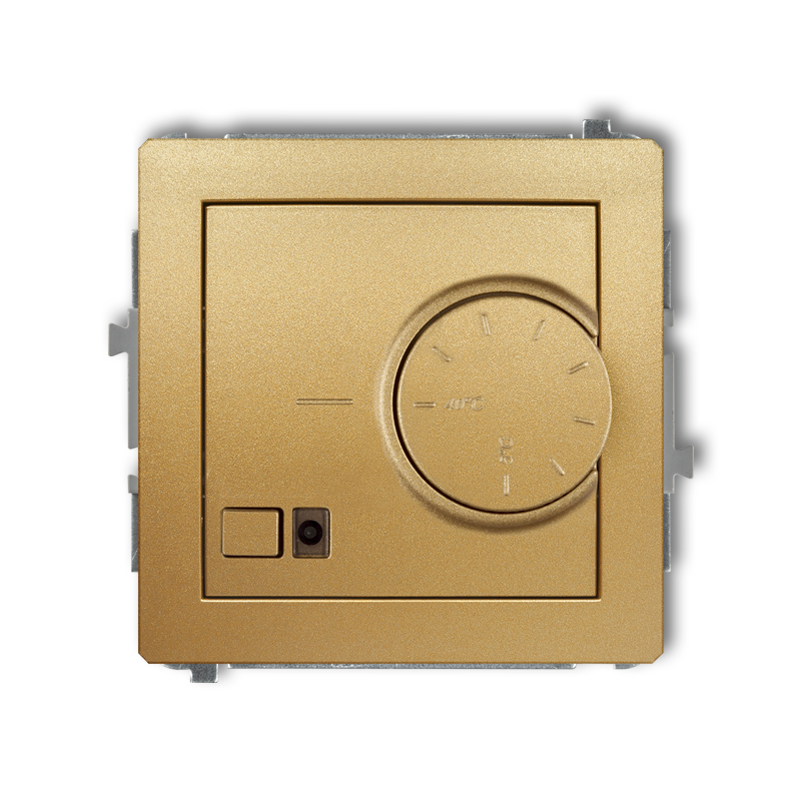

gold
29DRT-1
Product description
Downloads
Configurator
DECO mechanisms and frames are sold separately.
Electronic temperature controller enables maintaining set floor temperature automatically. Each circuit constitutes independent heating system to be set individually. It is particularly important in case the electric or water underfloor heating constitutes the only heating system.
Note! In the case of a sensor with other parameters, there is a risk that the device will work incorrectly or with lower accuracy.
More information in the DOWNLOADS section.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Power supply | 230 V 50 Hz |
| Maximum load | 3200 W |
| Temp. range | 5 ÷ 40 st C |
| Type of work | Continuous |
| Connection | Screw terminals |
| UV resistance | Resistant |
| Probe length | 3 m |
| Maximum cable length | type: 50 m / 2 x 0.2 ÷ 1 mm2 |
| Sensor measuring element | thermistor NTC 10K 1% |
| Sensor working temperature | -10 / 100 °C |
| Sensor protection degree | IP 67 |
Product variants
Complementary products
Related products
-
Electronic motion sensor mechanism
white
DCR-1
-
Condenser for energy saving lamps and LED
black
KL
-
Electronic control roller shutter mechanism (zone button function)
white
DSR-5
-

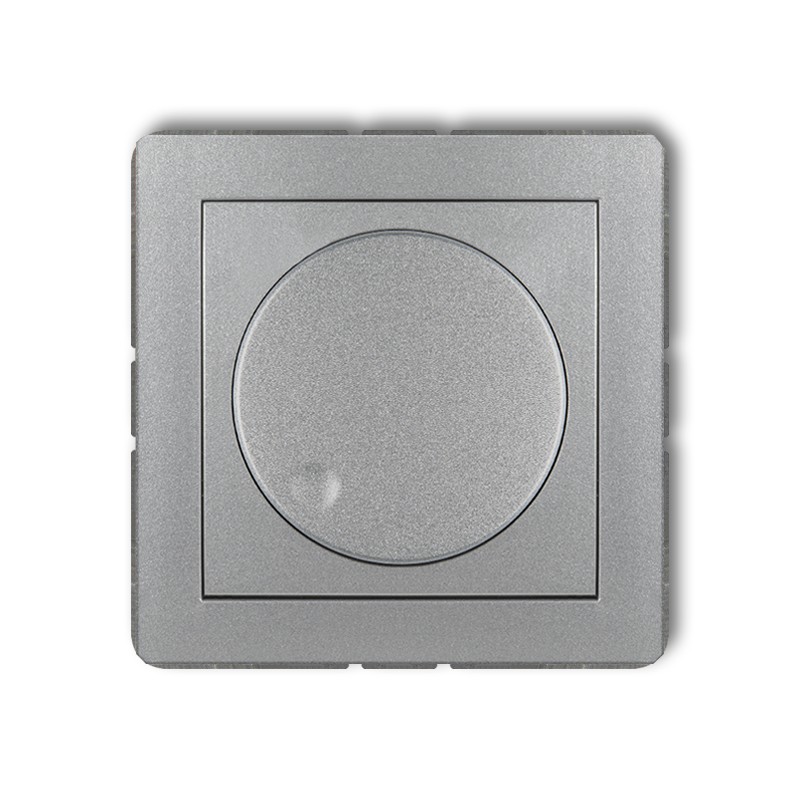

Electronic dimmer push-rotary mechanism
silver metallic
7DRO-1
-

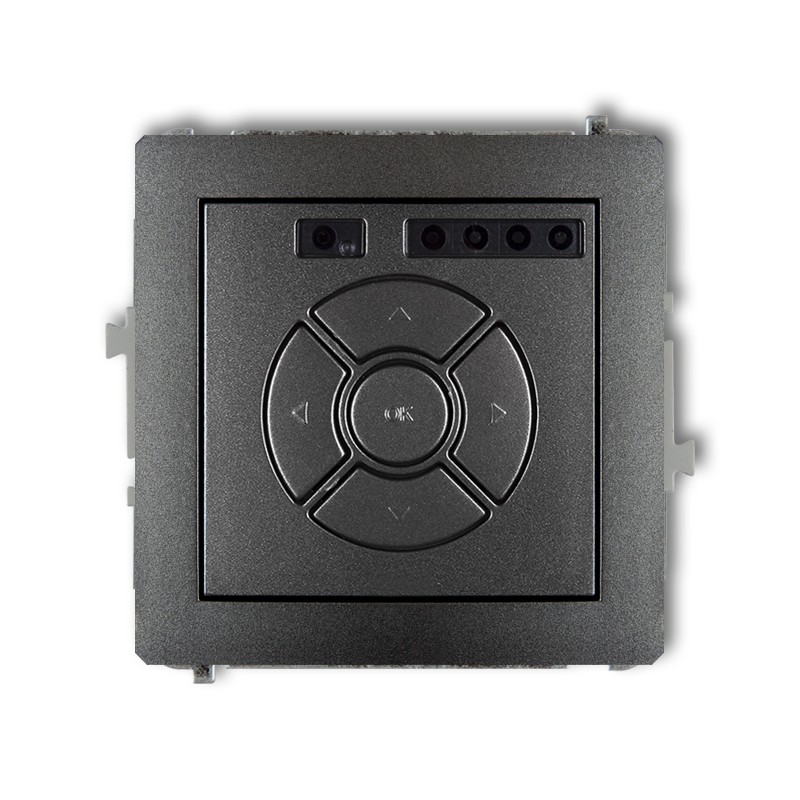

Electronic control roller shutter mechnism (local control, remote control, zone control, central/additional button)
