Universal electronic weekly temperature controller mechanism (white backlight)
white
DRT-3.1
-
white
DRT-3.1
-

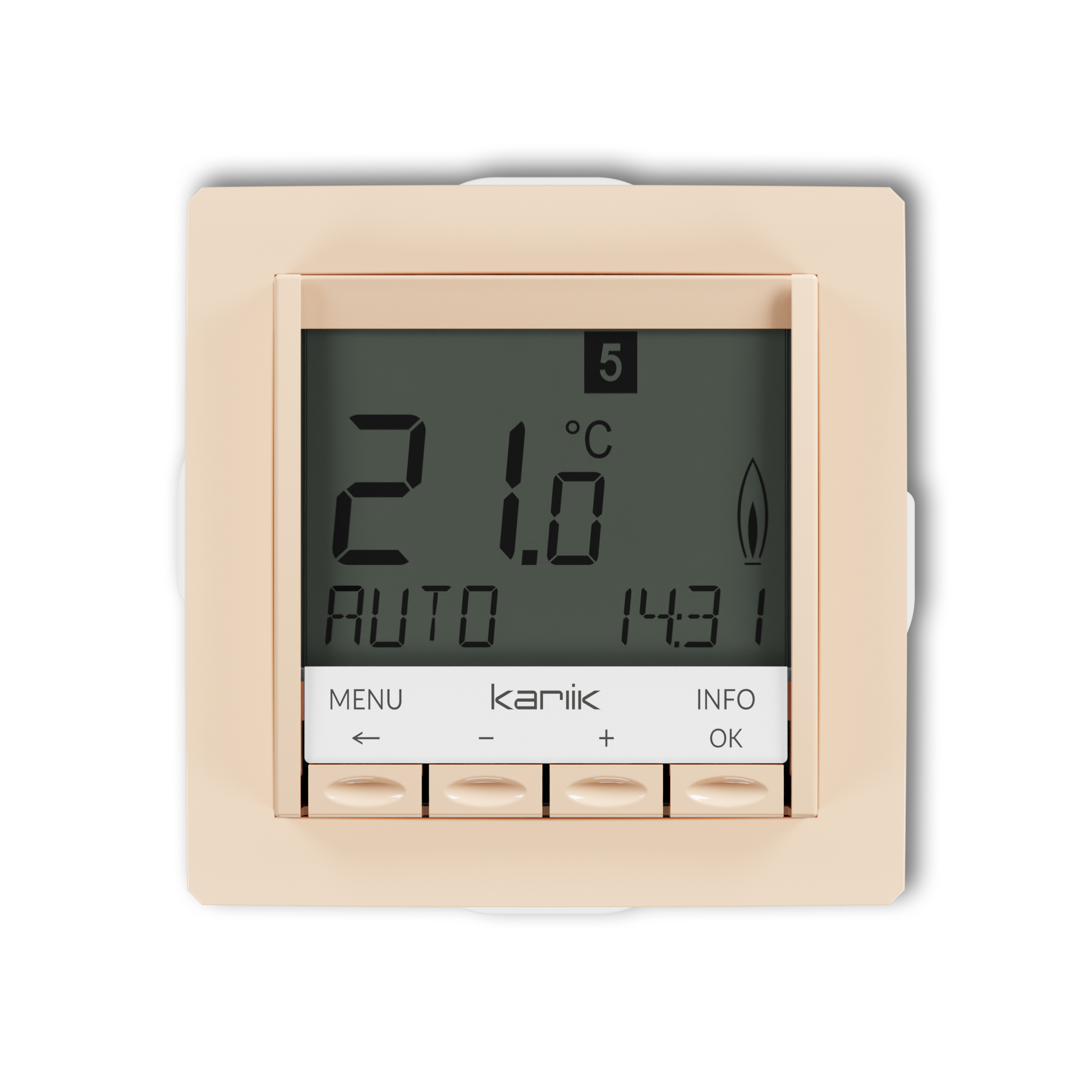

beige
1DRT-3.1
-

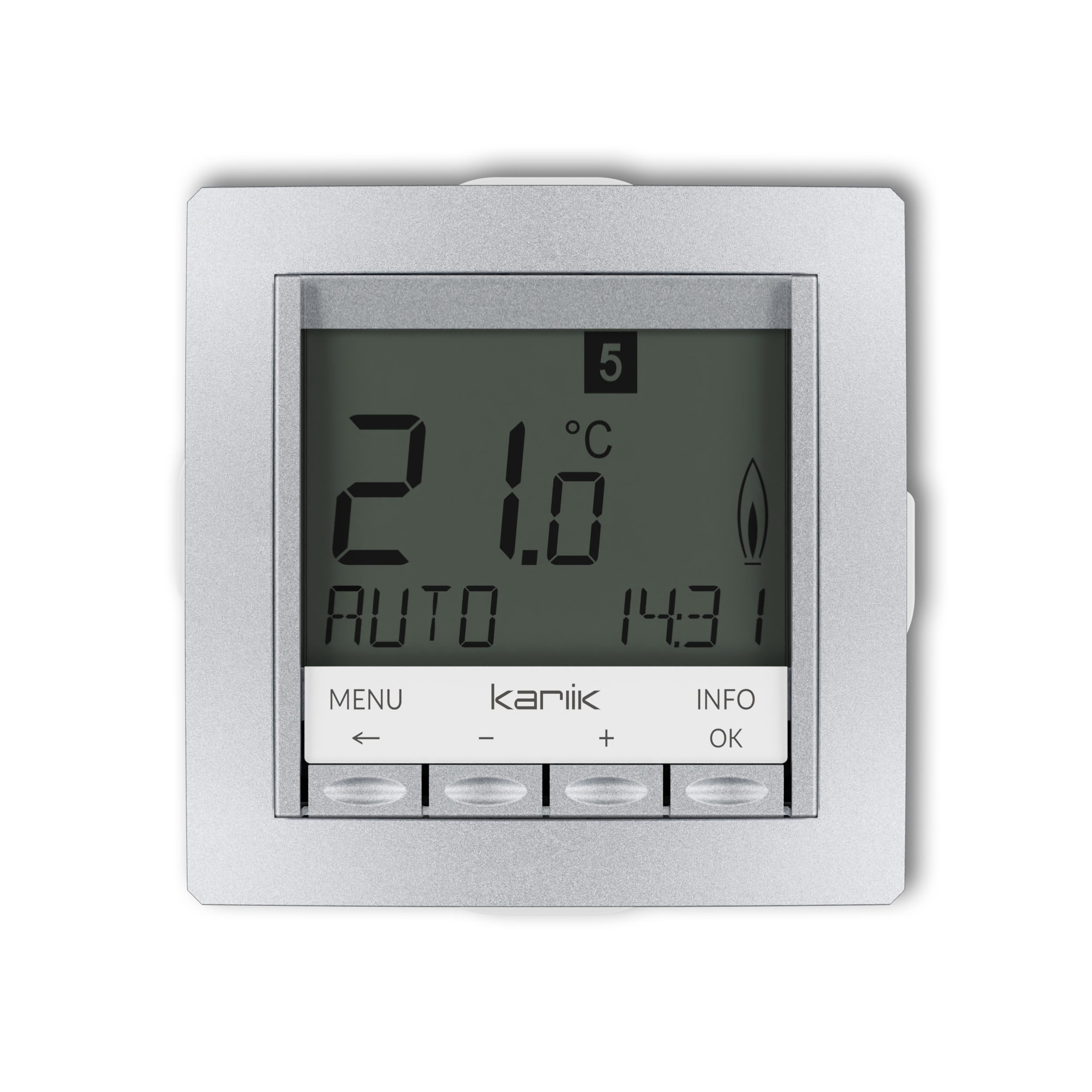

silver metallic
7DRT-3.1
-
gold metallic
8DRT-3.1
-

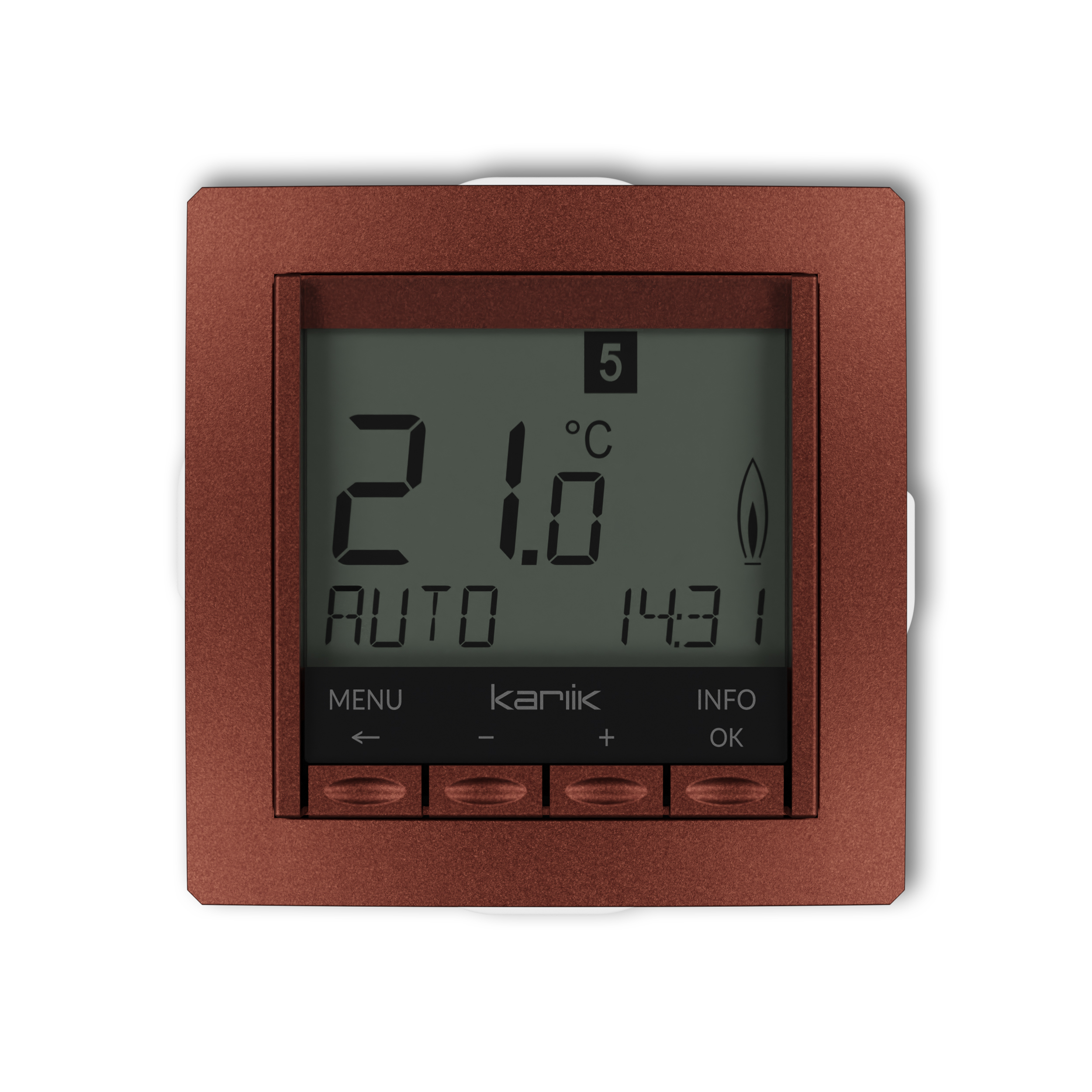

brown metallic
9DRT-3.1
-

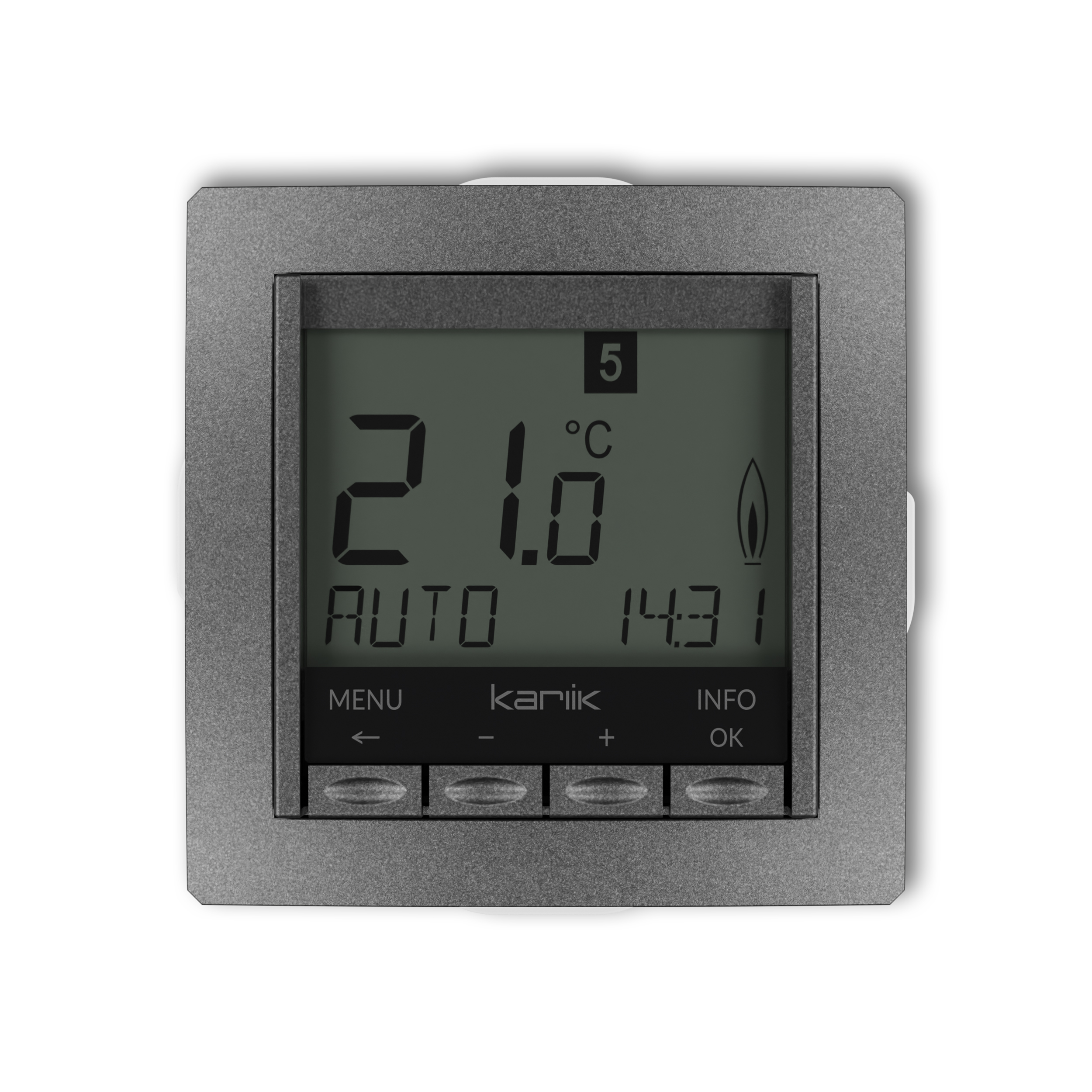

graphite
11DRT-3.1
-
matt black
12DRT-3.1
-

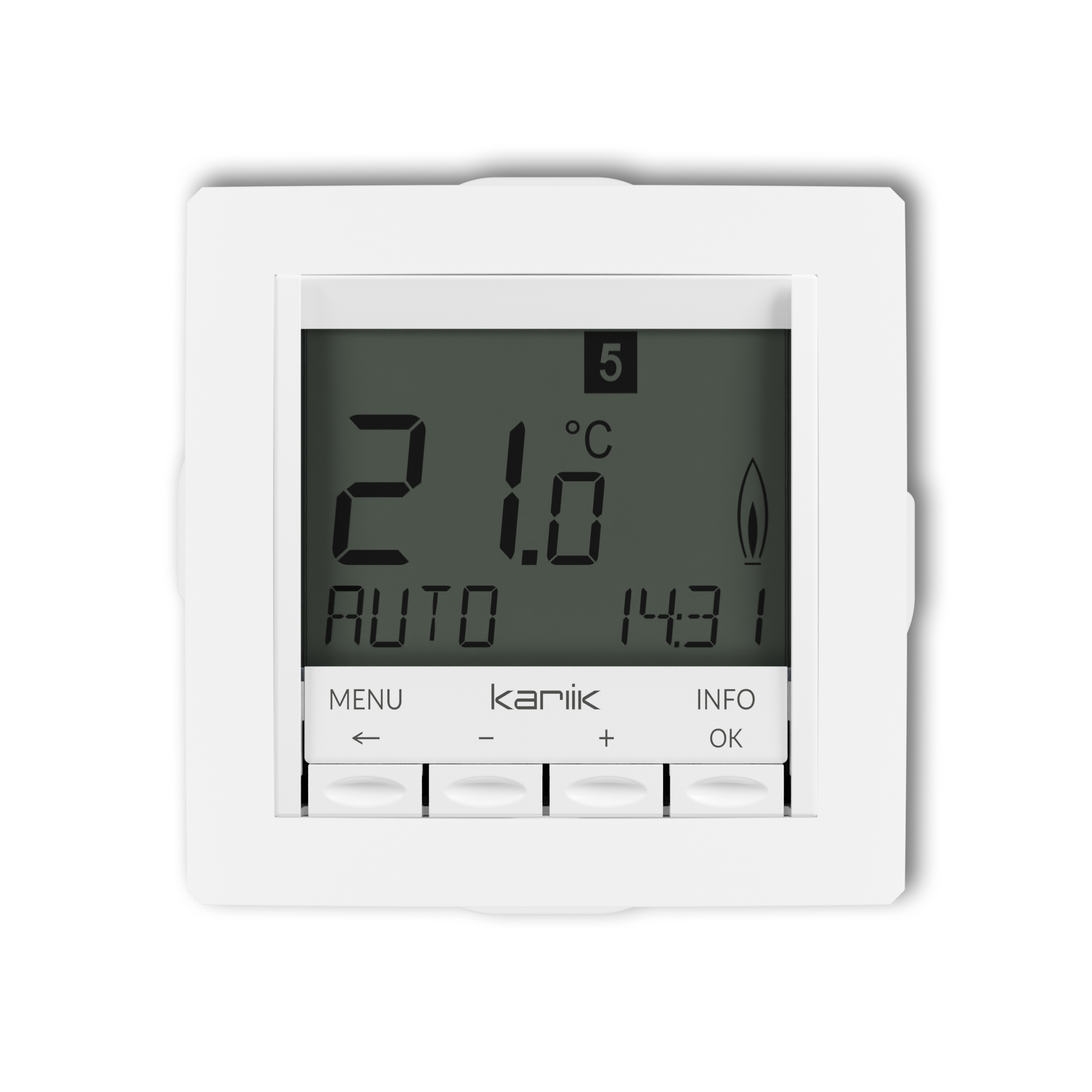

matt white
25DRT-3.1
-

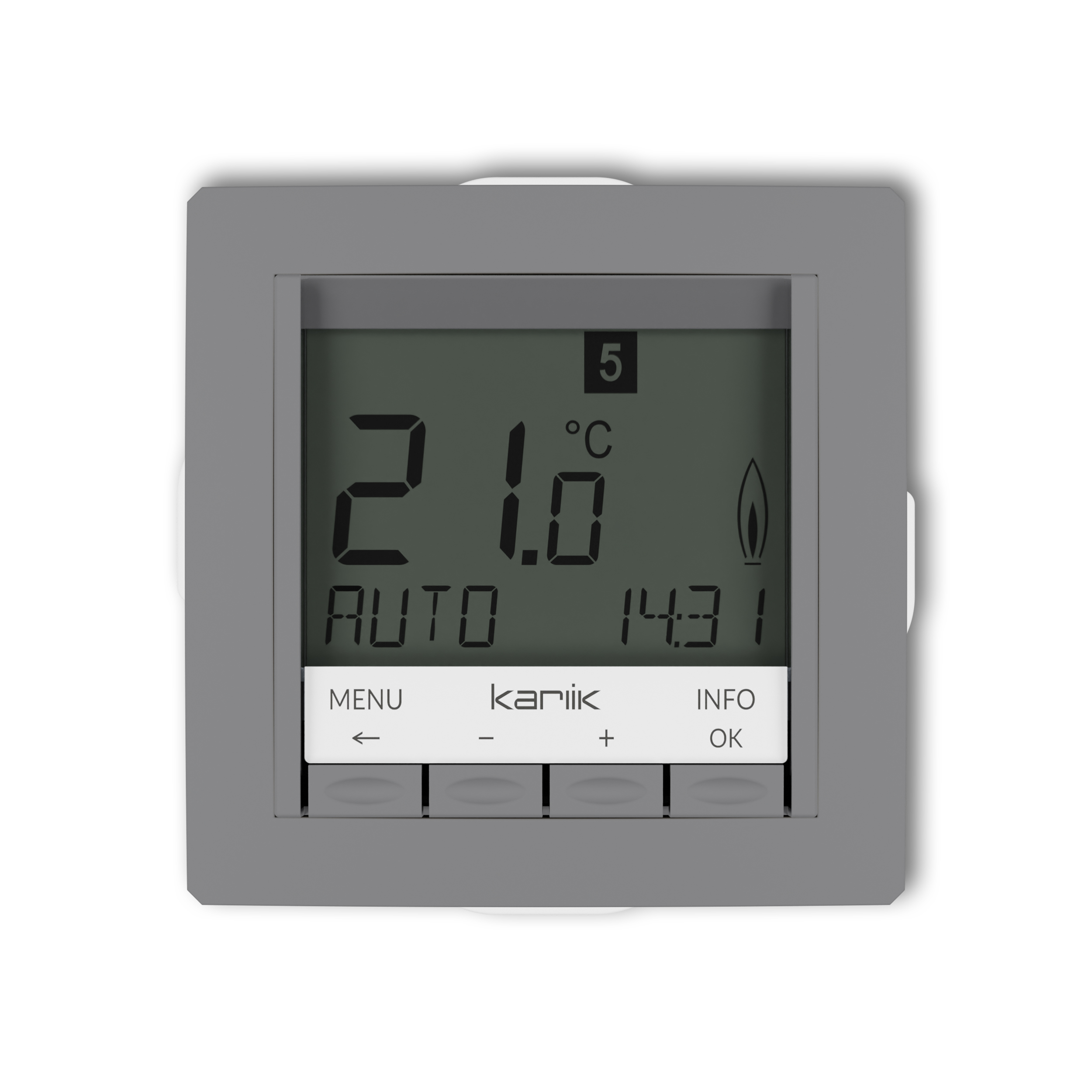

matt grey
27DRT-3.1
-

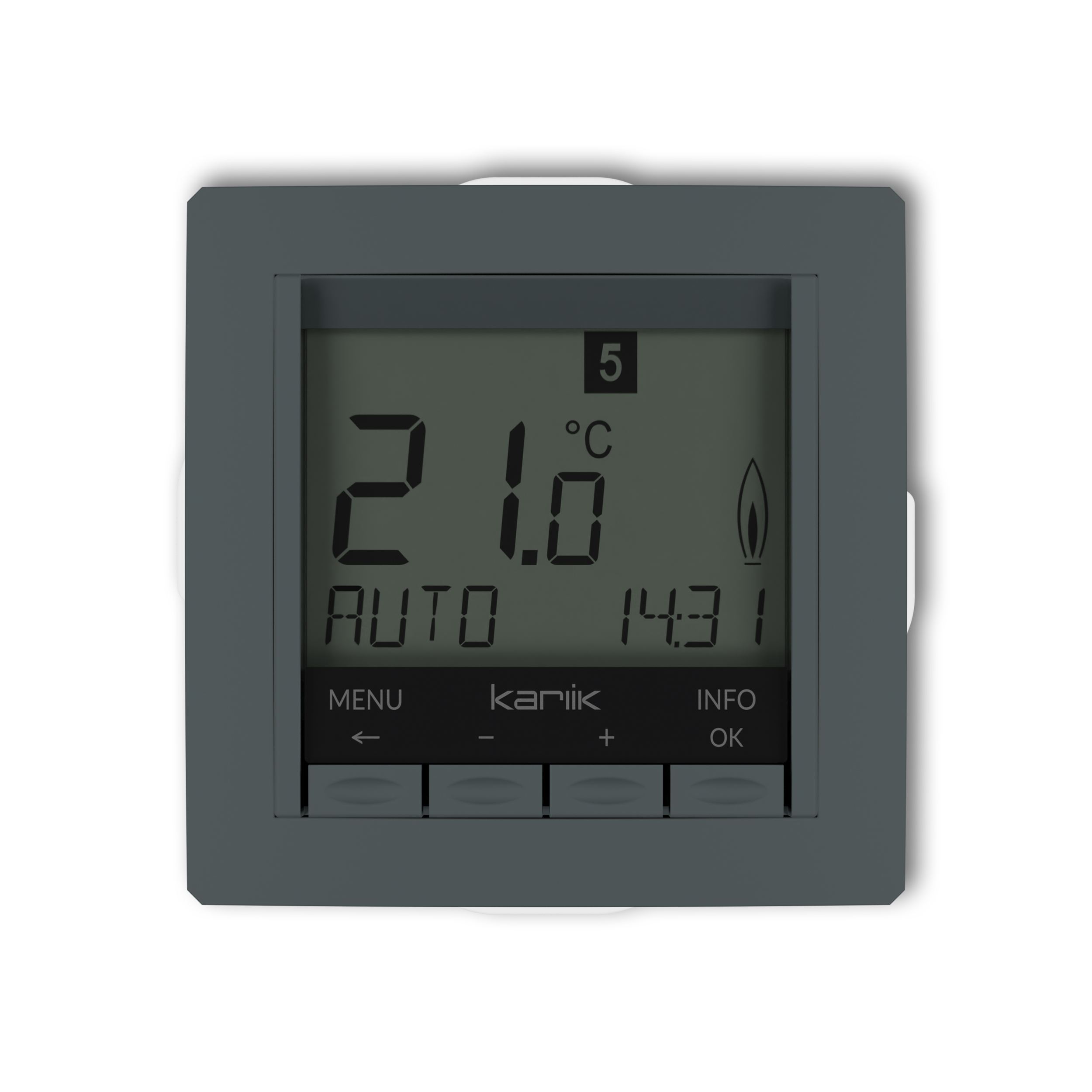

matt graphite
28DRT-3.1
-
gold
29DRT-3.1
Product description
Downloads
Configurator
DECO mechanisms and frames are sold separately.
The electronic weekly temperature controller is universal, i.e. it can be used as:
> a room thermostat,
> a floor heating thermostat,
> a room thermostat with a limiter.
For underfloor heating, it is necessary to purchase a probe (SO-1). The probe is only compatible with:
> .DRT-3.1 and .DRT-3.2 in the DECO series,
> .IRT-3.1 and .IRT-3.2 in the ICON series,
> .MRT-3.1 and .MRT-3.2 in the MINI series.
…RT-3.1 and …RT-3.2 they differ in display color: white backlight and blue backlight.
The thermostat has a remote control function (detachable front panel of the regulator); this allows the user to configure the device in comfortable conditions, away from where the device is installed.
The menu is available in the following languages English, Russian, French, Hungarian, Czech, and Polish (default).
The actual appearance of product may be different from the presented photographs.
Technical data
| Supply voltage | 230 V AC 50 Hz (195-253 V) |
| Temperature setting range | 5 °C-30 °C; in intervals of 0.5 °C |
| Temperature regulation in intervals after | 0,1 °C |
| Connection current | 10mA… 16(4)A*; 230 V~ |
| Output signal | pulse width modulation PWM or ON/OFF |
| PWM time intervals | adjustable |
| Hysteresis | adjustable |
| The shortest time frame | 10 minutes |
| Power consumption | ~ 1,2 W |
| Clock accuracy | < 4 minutes / year |
| Action reserve | ~ 10 years |
| Probe (optional) | SO-1, length 4 m, can be extended to 50 m |
| Ambient temperature during operation | 0 °C-40 °C (no moisture) |
| Ambient temperature during storage | –20 °C-70 °C (no moisture) |
| Rated surge voltage | 4 kV |
| Head testing temperature | 115 °C |
| Voltage and current for interference measurements | 230 V, 0,1A |
| Protection index | IP 30 |
| Protection class of the cover | II |
| Software class | A |
| Degree of pollution | 2 |
| Display color | DRT-3.1 - white backlight; DRT-3.2 - blue backlight |
| Relay | Output, 230 V |
