Electronic control roller shutter mechanism (local control)
white
DSR-1
-
white
DSR-1
-

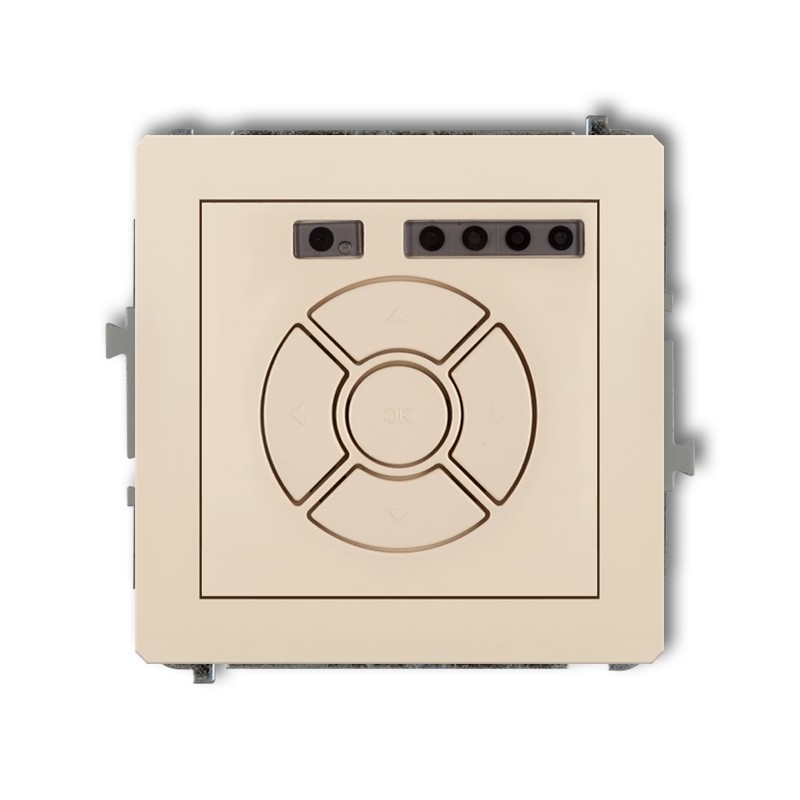

beige
1DSR-1
-
silver metallic
7DSR-1
-
gold metallic
8DSR-1
-

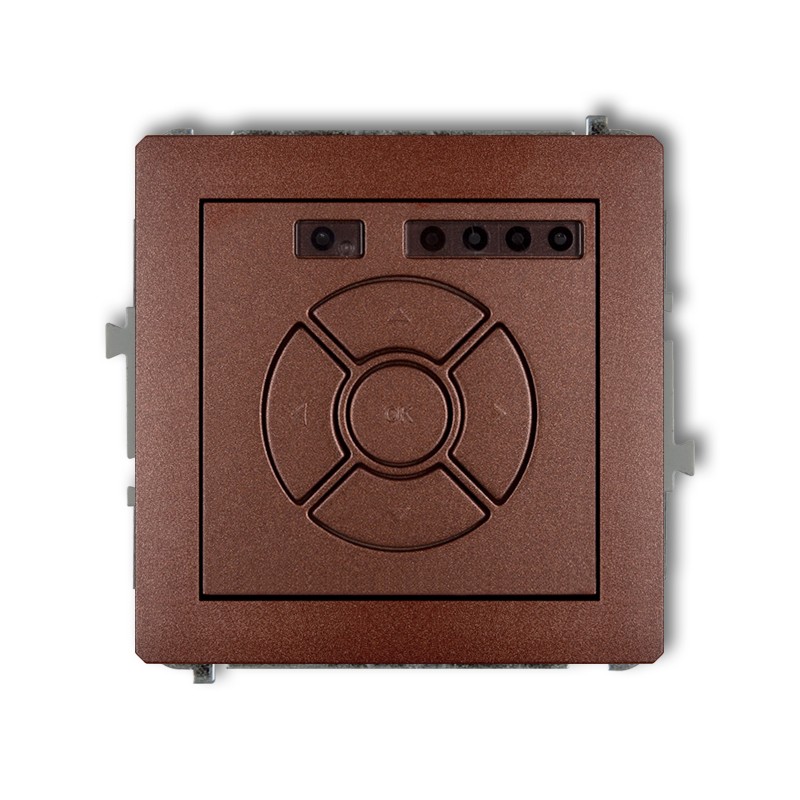

brown metallic
9DSR-1
-
graphite
11DSR-1
-
matt black
12DSR-1
-
matt white
25DSR-1
-

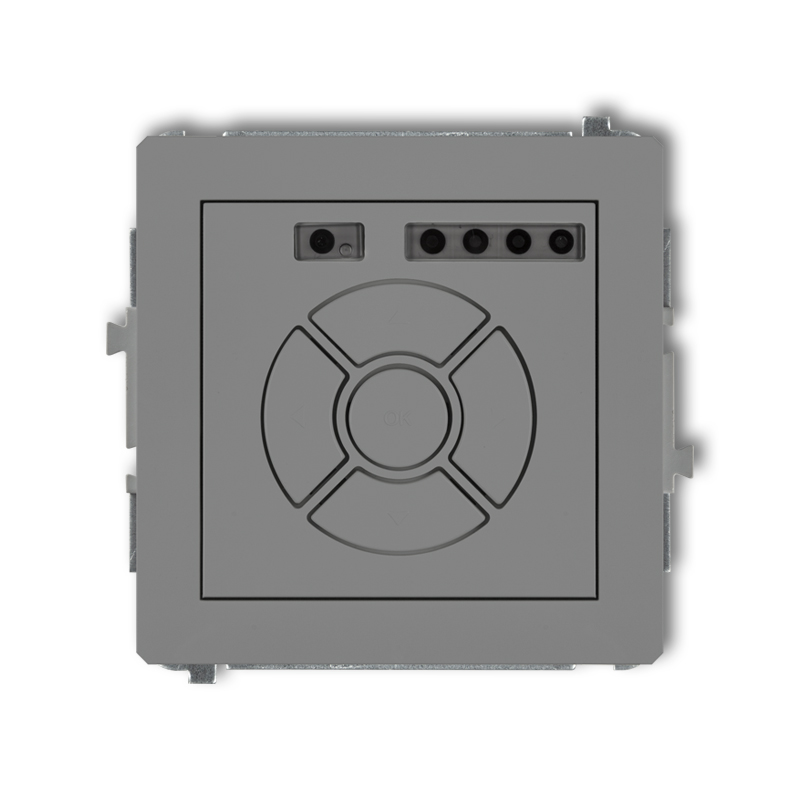

matt grey
27DSR-1
-

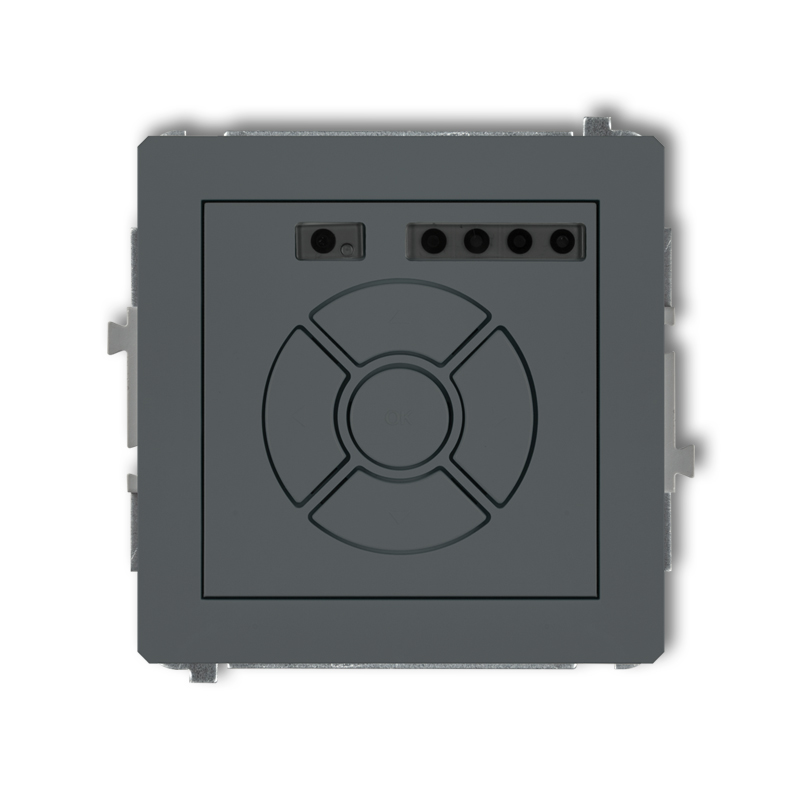

matt graphite
28DSR-1
-

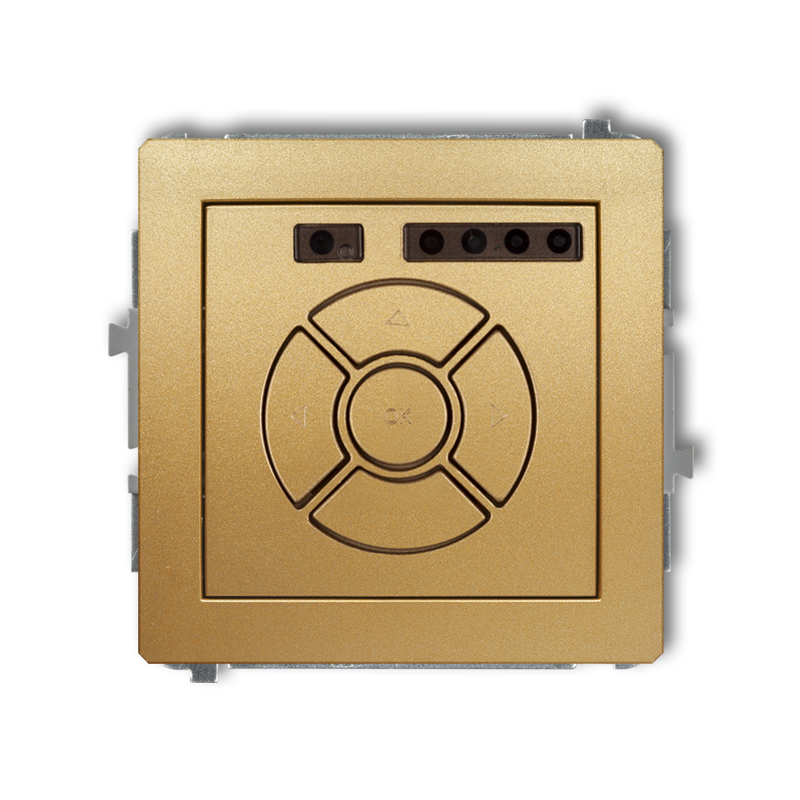

gold
29DSR-1
Product description
Downloads
Configurator
DECO mechanisms and frames are sold separately.
The device is designed for controlling roller blinds equipped with electric motor with power up to maximum 150W, 230V 50Hz electric mains-operated.
Note! one controller operates locally only one blind.
More information in the DOWNLOADS section.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Power supply | 230 V~ 50 Hz |
| Load range | max 150 W |
| Type of load | Inductive – single phase motor 230 V~ 50 Hz |
| Type of work | Intermittent |
| Cross-section of power supply cords | 0,75 ... 1,5 mm2 |
| Cross-section of control cords for BUS line | 3 x 0,5 ... 1 mm2 |
Product variants
-
Electronic control roller shutter mechanism (local control and remote control)
white
DSR-2
-

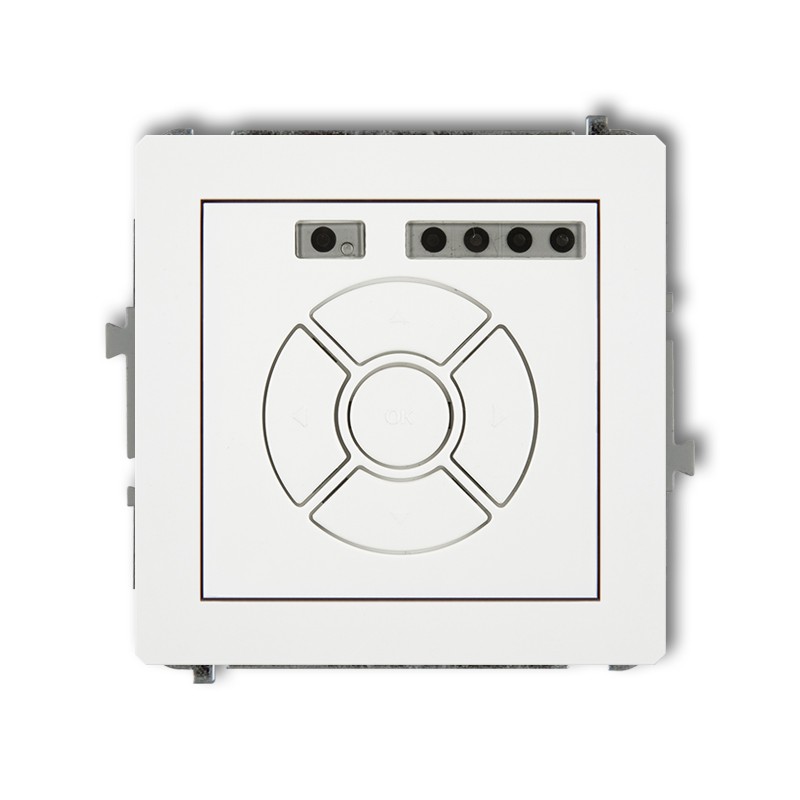

Electronic control roller shutter mechanism (central/additional button)
