American-style single switch mechanism
white
DWPUS-1
-
white
DWPUS-1
-

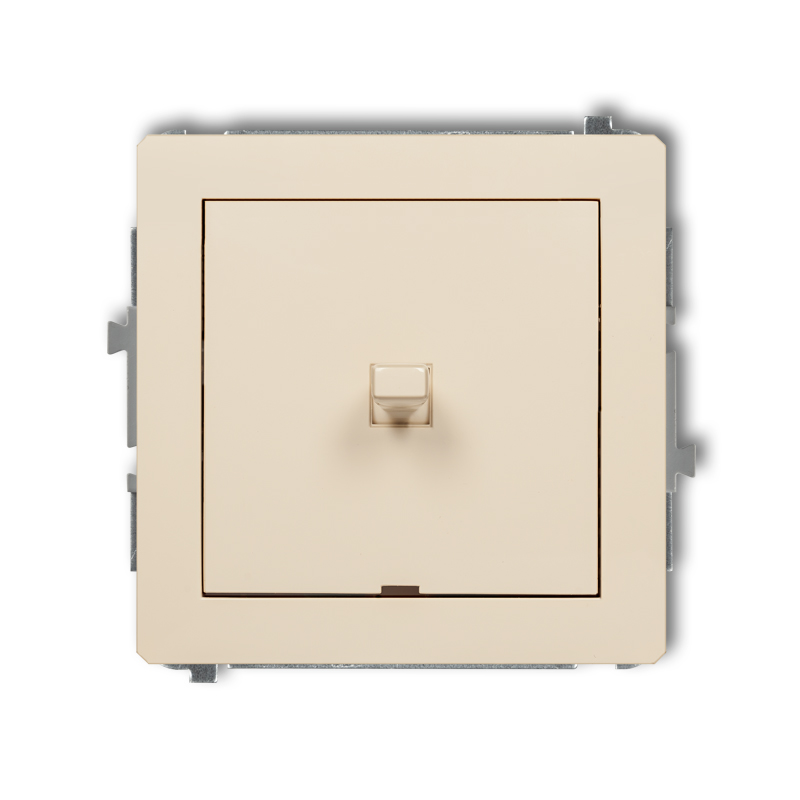

beige
1DWPUS-1
-
silver metallic
7DWPUS-1
-

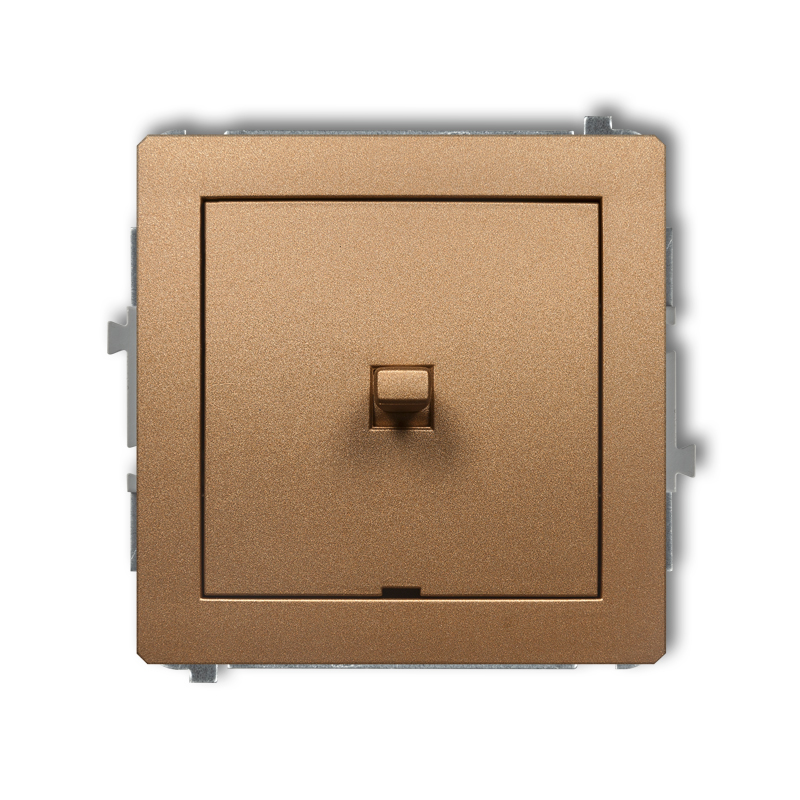

gold metallic
8DWPUS-1
-

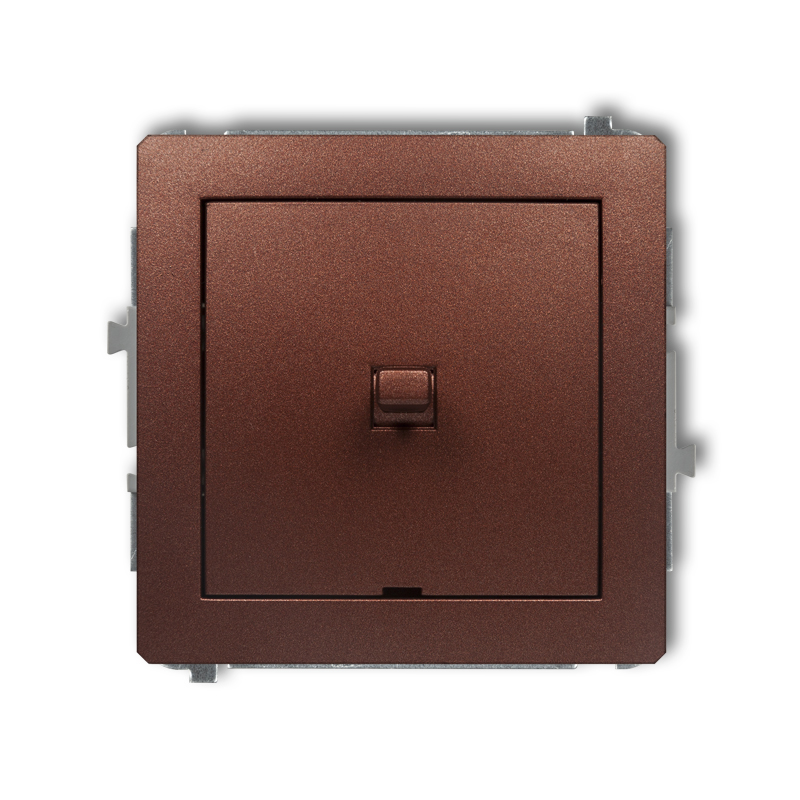

brown metallic
9DWPUS-1
-
graphite
11DWPUS-1
-

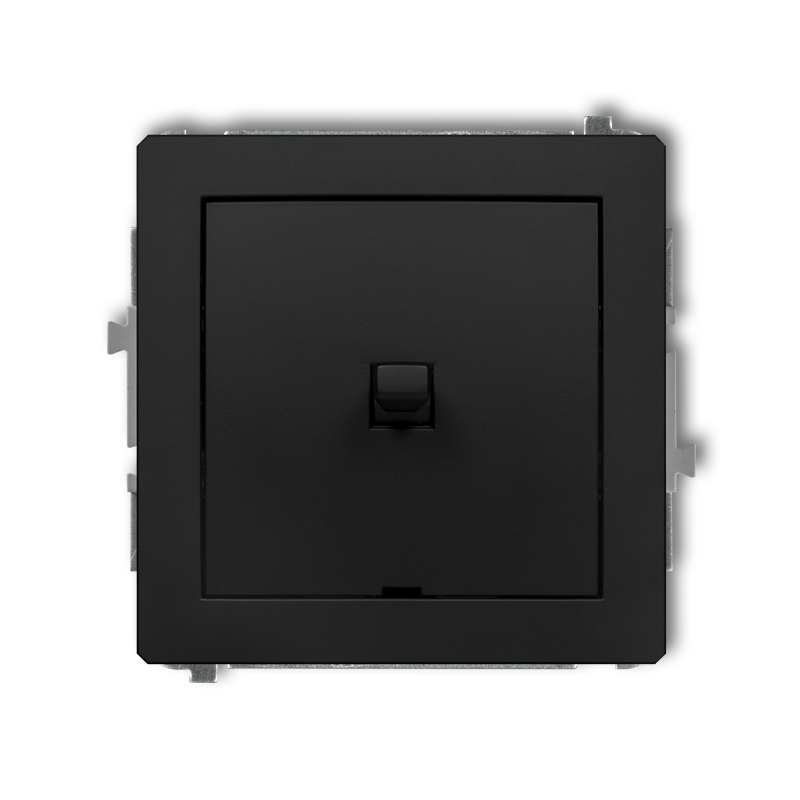

matt black
12DWPUS-1
-

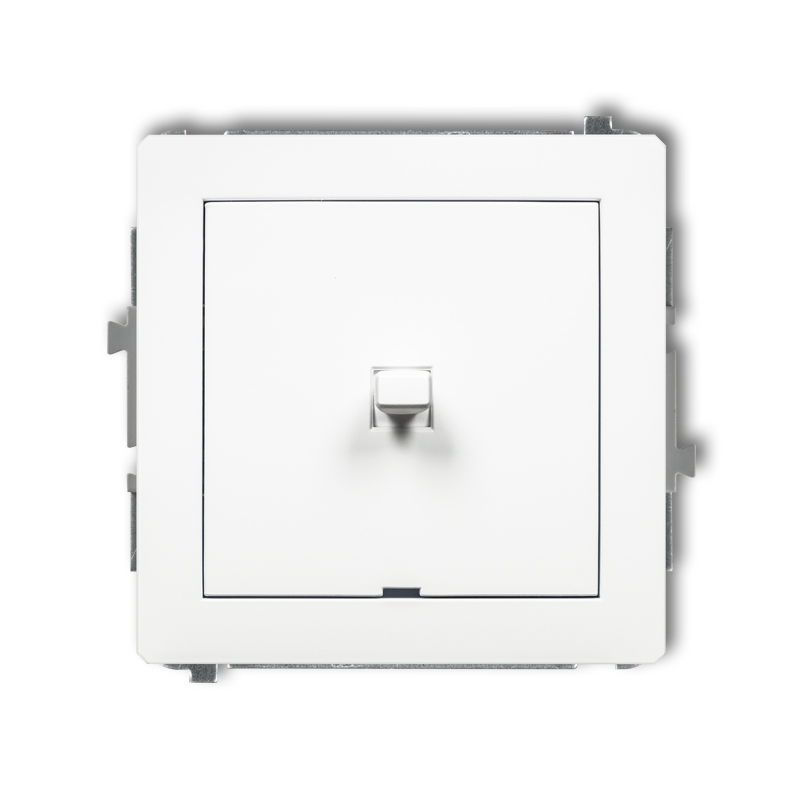

matt white
25DWPUS-1
-

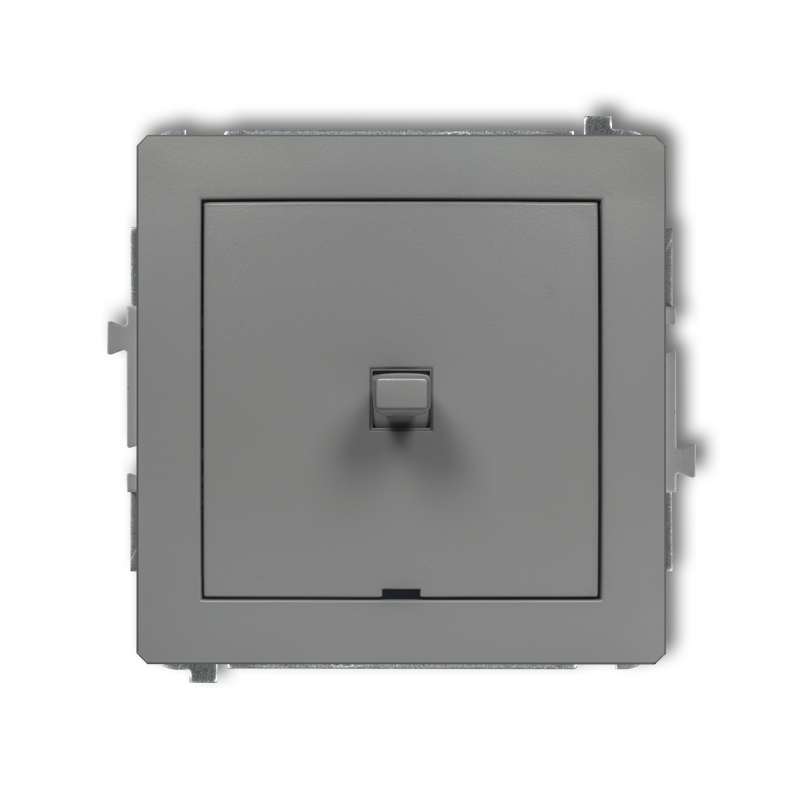

matt grey
27DWPUS-1
-
matt graphite
28DWPUS-1
-

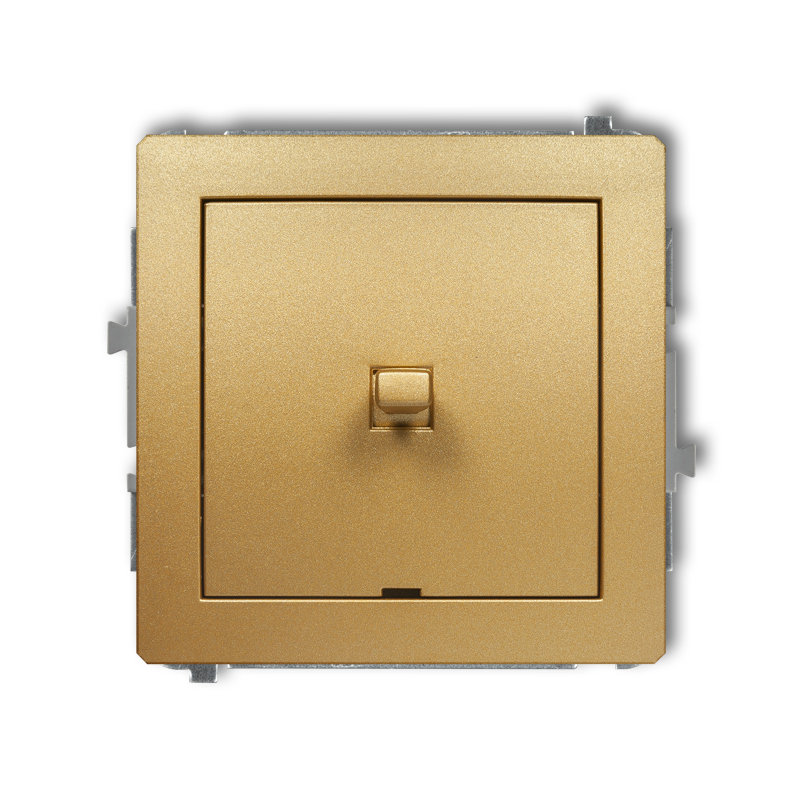

gold
29DWPUS-1
Product description
Downloads
Configurator
DECO mechanisms and frames are sold separately.
DECO switches in American style are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all DECO switches besides the following switches: DWPUS-8, DWPUS-44.2, DWPUS-33, DWPUS-33.1, DWPUS-10.2, DWPUS-10.21.
DECO switches in american style are not available in hermetic type (IP44) - sealant can not be used with the American style switches mechanisms.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated current | 10 AX |
| Rated voltage | 250 V~ |
