American-style double pole switch mechanism
white
DWPUS-9
-
white
DWPUS-9
-

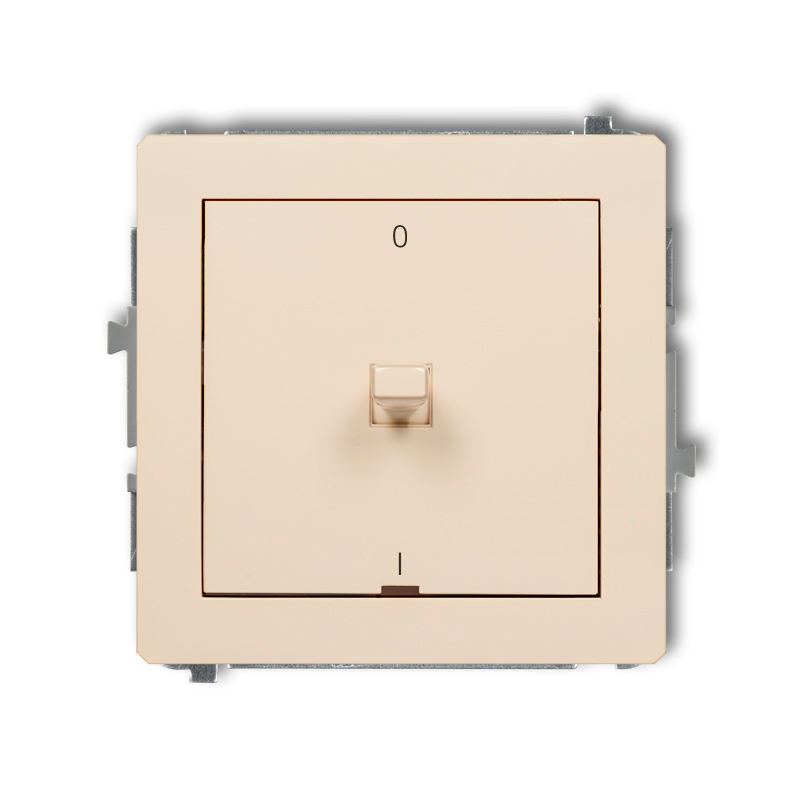

beige
1DWPUS-9
-
silver metallic
7DWPUS-9
-

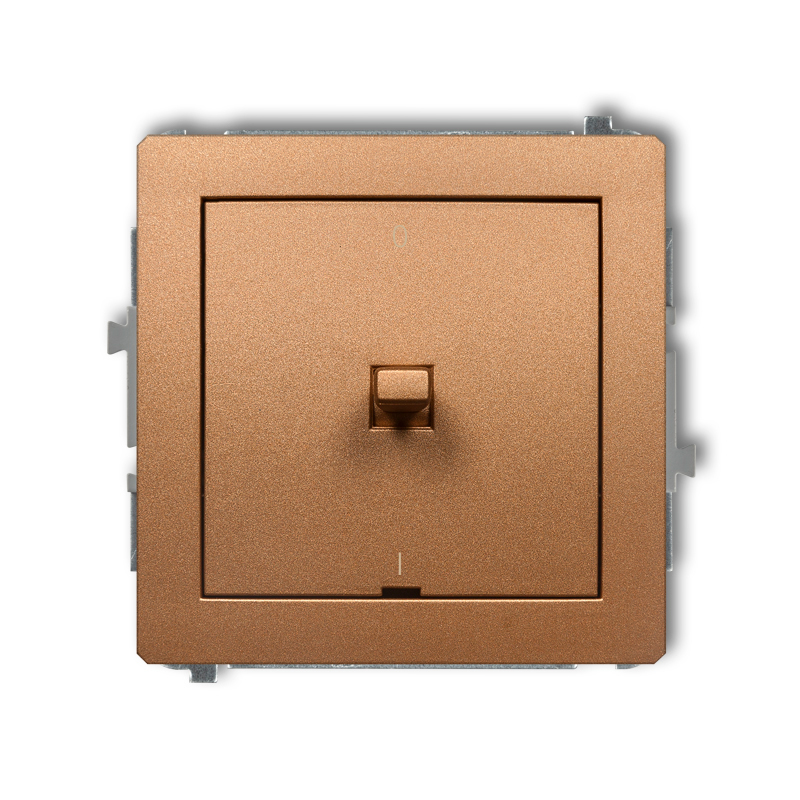

gold metallic
8DWPUS-9
-

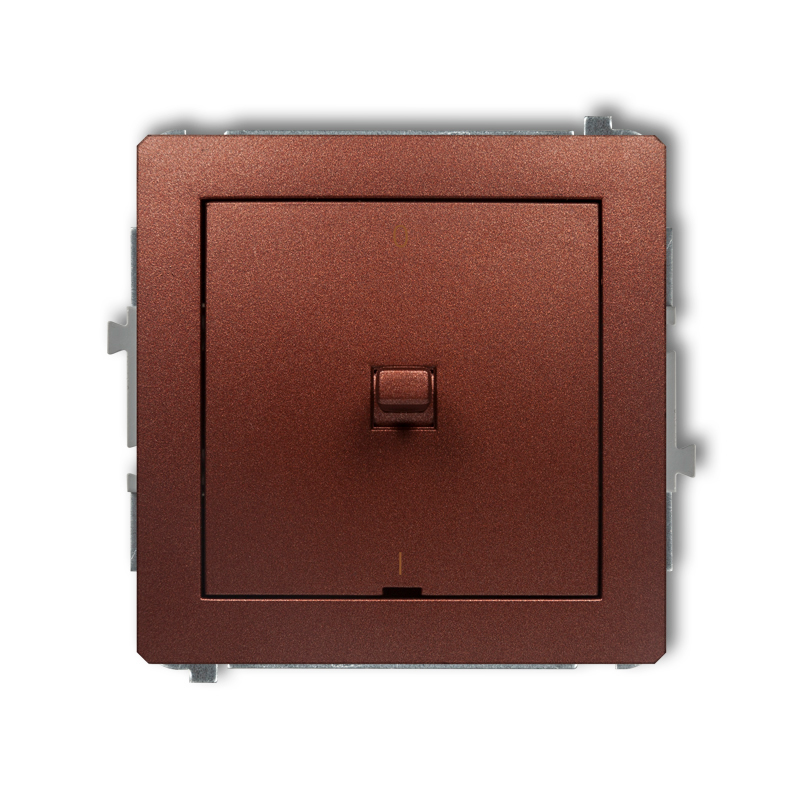

brown metallic
9DWPUS-9
-

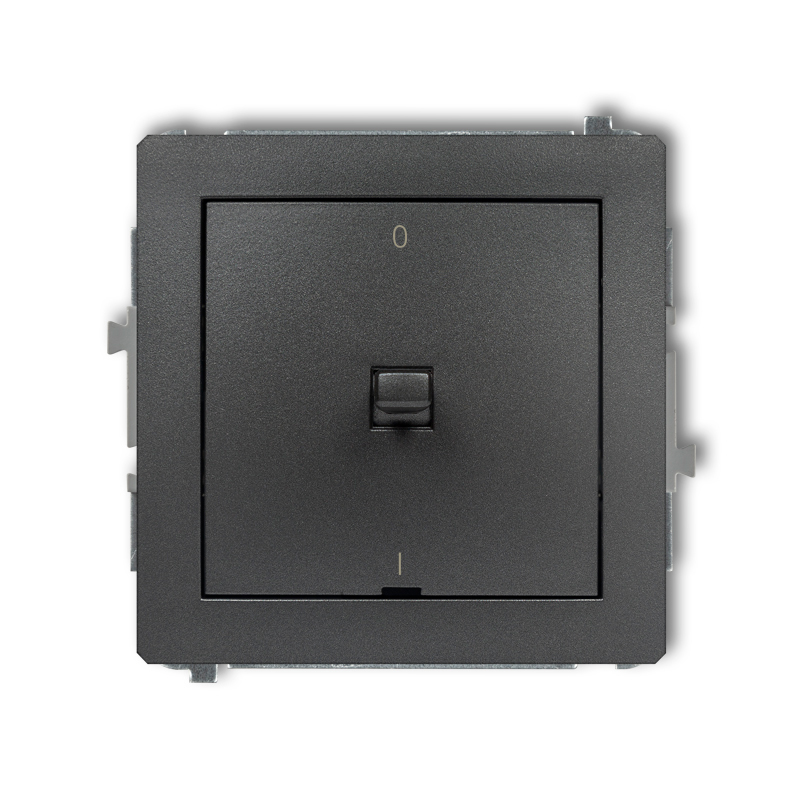

graphite
11DWPUS-9
-
matt black
12DWPUS-9
-

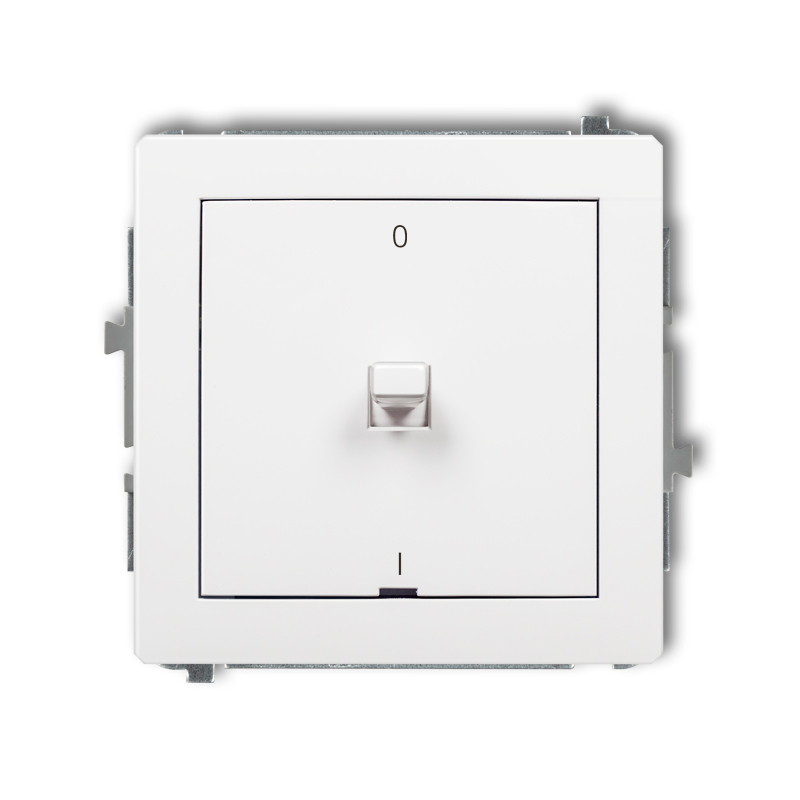

matt white
25DWPUS-9
-
matt grey
27DWPUS-9
-

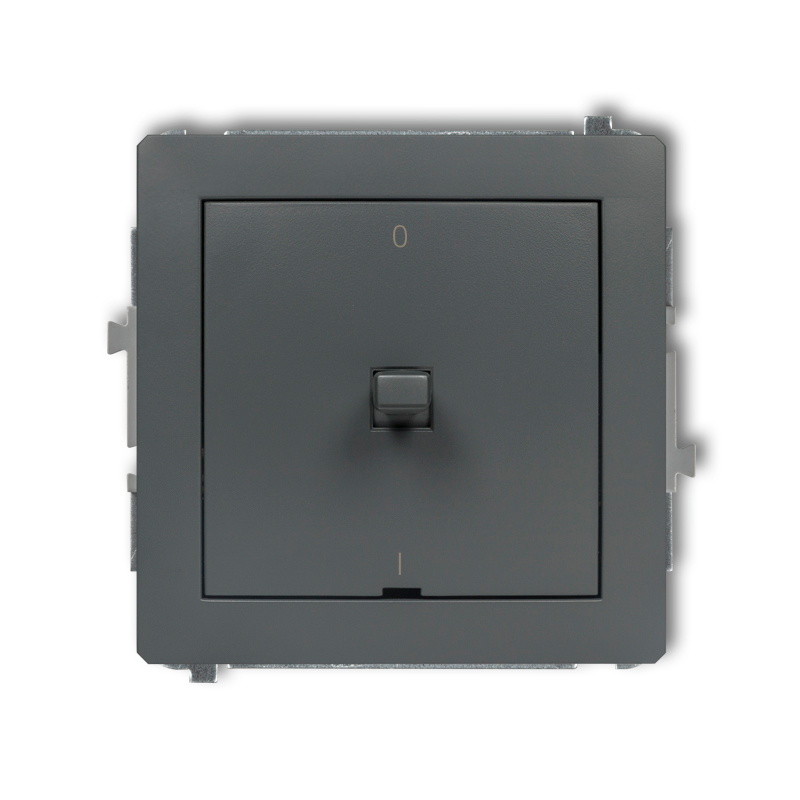

matt graphite
28DWPUS-9
-

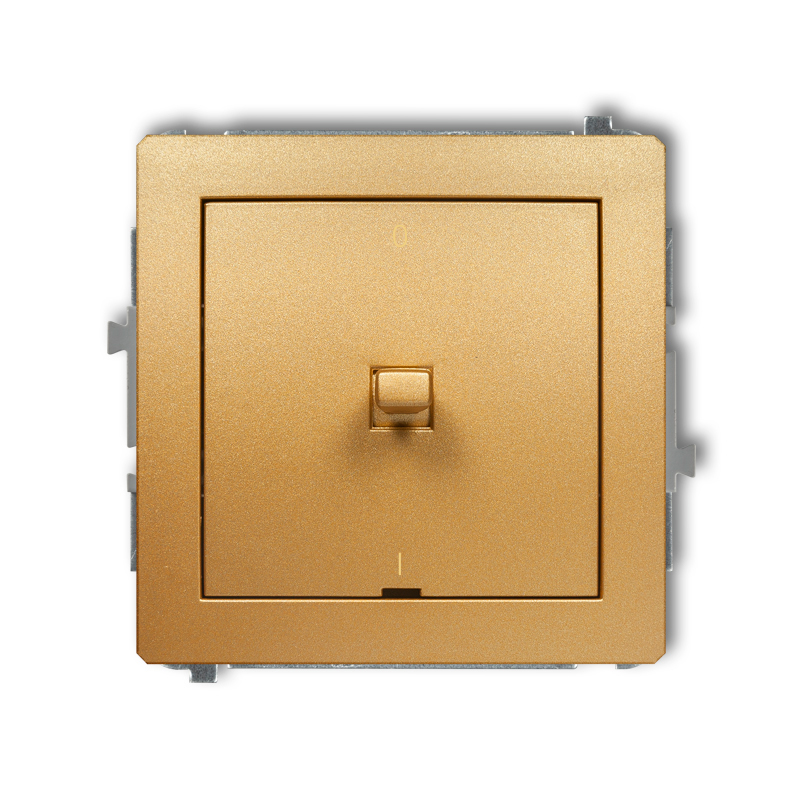

gold
29DWPUS-9
Product description
Downloads
Configurator
DECO mechanisms and frames are sold separately.
DECO switches in American style are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all DECO switches besides the following switches: DWPUS-8, DWPUS-44.2, DWPUS-33, DWPUS-33.1, DWPUS-10.2, DWPUS-10.21.
DECO switches in american style are not available in hermetic type (IP44) - sealant can not be used with the American style switches mechanisms.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated current | 10 AX |
| Rated voltage | 250 V~ |
Product variants
-
American-style two-circuit switch mechanism
white
DWPUS-2
-
American-style single push button "bell" mechanism (single push button without pictogram)
graphite
11DWPUS-4.1
-
American-style single switch mechanism
matt black
12DWPUS-1
-
American-style two-way switch mechanism
matt grey
27DWPUS-3
-

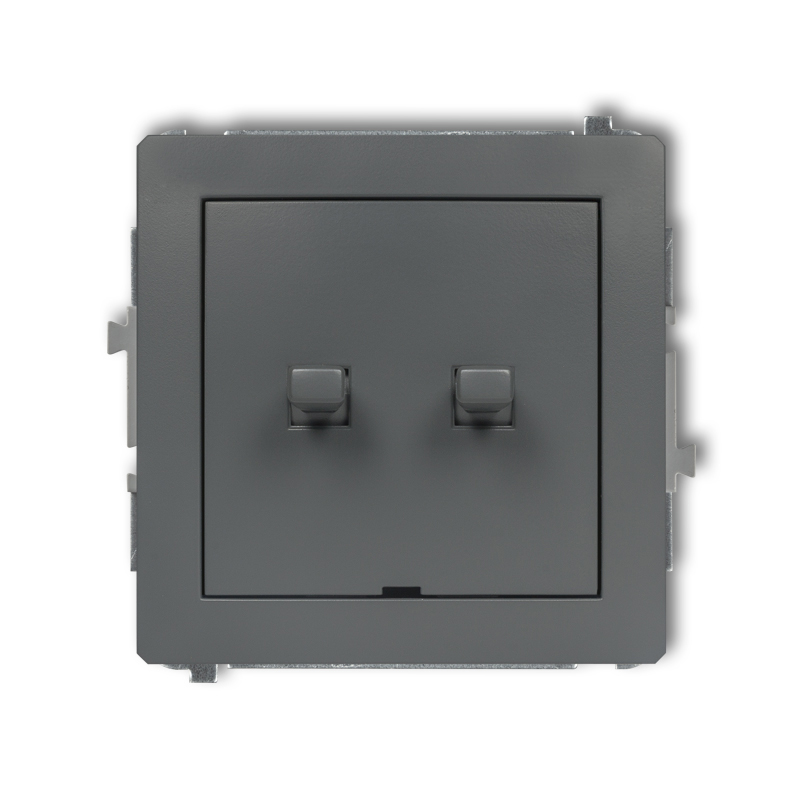

American-style roller blind switch mechanism (double push button without pictograms)
matt graphite
28DWPUS-8
